Front Fender Liner: Service and Repair

76.10.48 Liner - Front Wheel Arch

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove road wheel.
3. Remove front mud flap.

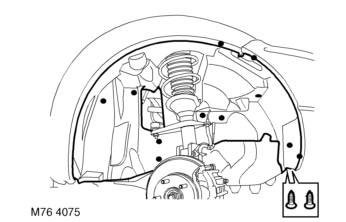

4. Remove 3 screws securing wheel arch liner to wing and bumper.
5. Remove 8 retaining studs securing wheel arch liner to inner wing.
6. Release and remove wheel arch liner.

Refit

1. Fit wheel arch liner.
2. Fit retaining studs securing wheel arch liner to inner wing.
3. Fit and tighten screws securing wheel arch liner to wing and bumper.
4. Fit front mud flap.
5. Fit road wheel(s) and tighten nuts.
6. Remove stand and lower vehicle.
