Console Assembly - Front - From 04MY

76.25.01 Console Assembly - Front - From 04MY

Remove

1. Remove rear console.
2. Remove gear selector indicator assembly.







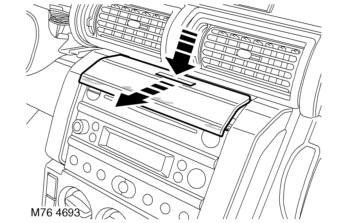

3. Carefully lever upper console finisher rearward, to release clips on forward edge of finisher.

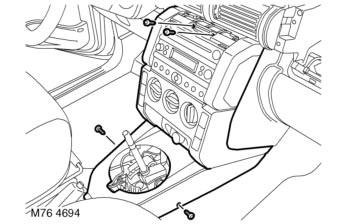

4. Remove 4 screws securing centre console.

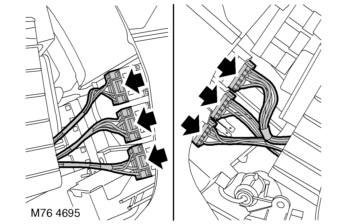

5. Disconnect 6 multiplugs and remove console.

NOTE: Do not carry out further dismantling if component is removed for access only.

6. Remove switches from console, noting fitted position.
7. Remove 4 screws securing ash tray to centre console finisher and remove ash tray.

Refit

1. Fit switches to console.
2. Fit and secure ash tray to centre console finisher.
3. Position console assembly and connect multiplugs.
4. Fit console and secure with screws.
5. Align upper console finisher and secure with clips.
6. Refit gearshift selector assembly.
7. Fit rear console.
