Radiator Support: Service and Repair

Bonnet Locking Platform

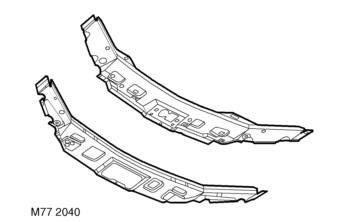

In this procedure the bonnet locking platform reinforcement is also replaced in conjunction with the bonnet locking platform.

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove front bumper valance.
5. Remove radiator.
6. Remove both headlamp assemblies.
7. Remove horn.
8. Remove battery.
9. Remove air intake hose.
10. Remove bonnet lock.
11. Support bonnet in open position.
12. Remove bonnet stay.

Repair







1. Remove existing panel(s), prepare panel joint faces and install new panel(s) in accordance with Panel Replacement Procedure.

Refit

1. Fit bonnet stay.
2. Fit bonnet lock.
3. Fit air intake hose.
4. Fit battery. Do not connect earth lead.
5. Fit horn.
6. Fit both headlamp assemblies.
7. Fit radiator.
8. Fit front bumper valance.
9. Connect all ECUs.
10. Connect alternator.
11. Connect battery earth lead.
