Splash Guard: Service and Repair

76.10.50 Panel - Underbelly


Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

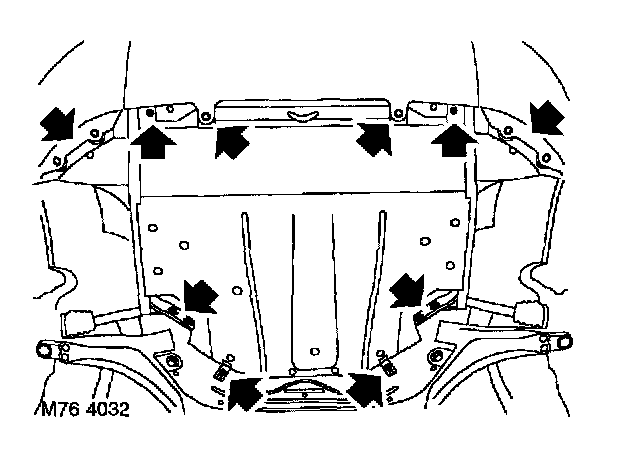

2. Remove 2 screws securing bumper valance to underbelly panel brackets.
3. Remove 4 screws securing wheel arch liners to bumper valance, it fitted.
4. Remove 2 bolts securing rear of underbelly panel.
5. Remove 6 bolts securing underbelly panel frame.
6. Remove underbelly panel.

Refit
1. Position underbelly panel.
2. Fit bolts securing underbelly panel frame and tighten to 45 Nm (33 ft lbs).
3. Fit bolts securing rear of underbelly panel and tighten to 8 Nm (6 ft lbs).
4. Fit and tighten screws securing wheel arch liners to bumper valance, if fitted.
5. Fit and tighten screws securing bumper valance to brackets.
6. Remove stands and lower vehicle.
