Tailgate Latch: Service and Repair

76.37.16 Latch - Tail Door

Remove

1. Remove tail door plastic sheet.

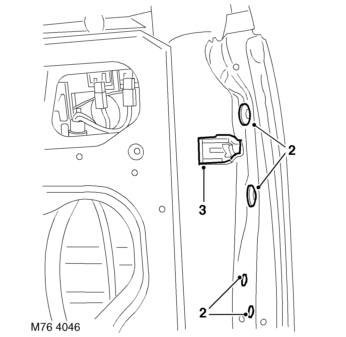

2. Remove 4 screws securing door latch.

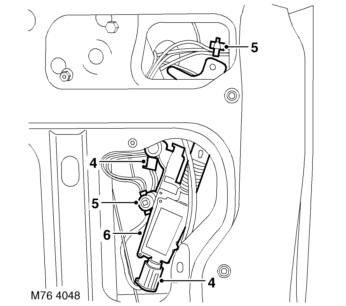

3. Release door latch to access harness clips and multiplugs.







4. Disconnect 2 multiplugs from door latch.
5. Release 2 door harness clips from latch.
6. Remove door latch.

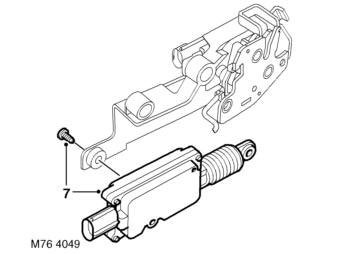

7. Remove screw from solenoid motor and remove motor from latch.

Refit

1. Position solenoid motor to latch, fit and tighten screw.
2. Position door latch, connect multiplugs and harness clips.
3. Locate door latch in position, fit and tighten screws.
4. Fit tail door plastic sheet.
