Trunk / Liftgate Weatherstrip: Service and Repair

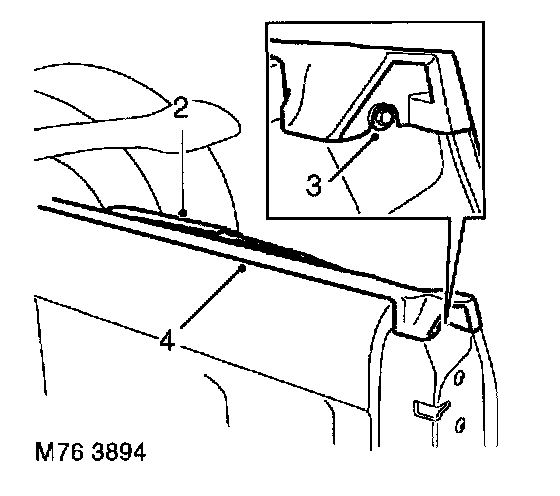

Remove 1.
Lower rear screen.
2.
Raise wiper blade away from seal.
3.
Remove 2 bolts from ends of seal.
4.
Release seal from door flanges.
5.
Remove waist seal.
Refit 1.
Position seal to door flanges and secure with bolts.
2.
Lower wiper blade onto seal.
3.
Raise rear screen.
