Traction Control Switch: Service and Repair

Switch - Hill Descent - From 04MY

Service Repair No - 70.70.11

Remove

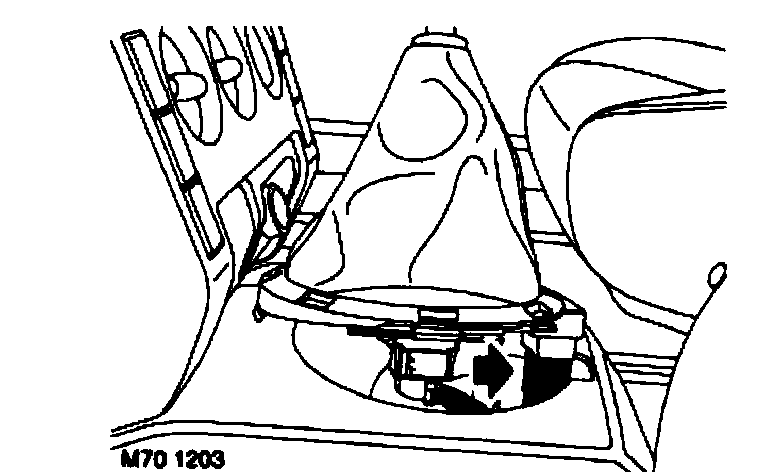

1. Working from forward edge, carefully release spring clip securing gear selector indicator assembly to center console. Release 2 additional clips at the sides and slide assembly forward.





2. Disconnect multiplug from hill descent switch.
3. Remove hill descent switch from gear selector indicator assembly.

Refit
1. Fit and secure hill descent switch to gear selector Indicator assembly.
2. Connect hill descent control switch multiplug.
3. Fit and secure gear selector indicator assembly to center console.
