Brake Fluid Level Sensor/Switch: Service and Repair
Switch - Low Fluid Level
Service Repair No - 70.65.06Remove 1.

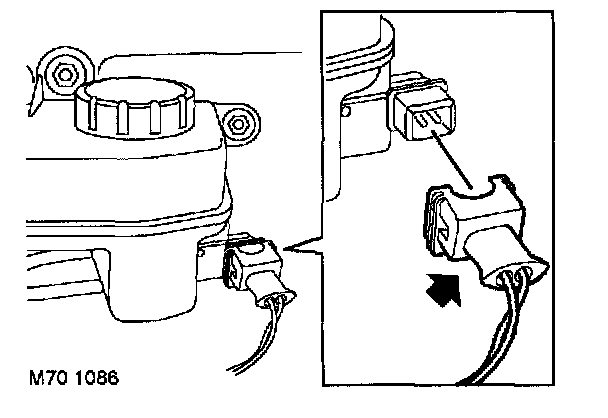

Disconnect brake fluid level multiplug.
2.

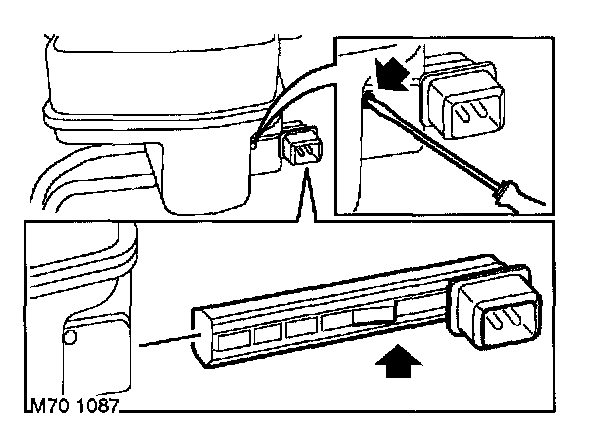

Release retaining pin and remove fluid level switch.
Refit 1.
Clean brake fluid level switch.
2.
Fit brake fluid level switch.
3.
Connect multiplug to brake fluid level switch.
