Cruise Control Switch: Service and Repair



19.75.30 Switch - Cruise Control - KV6 - up to 04MY

Remove
1. Remove radio.

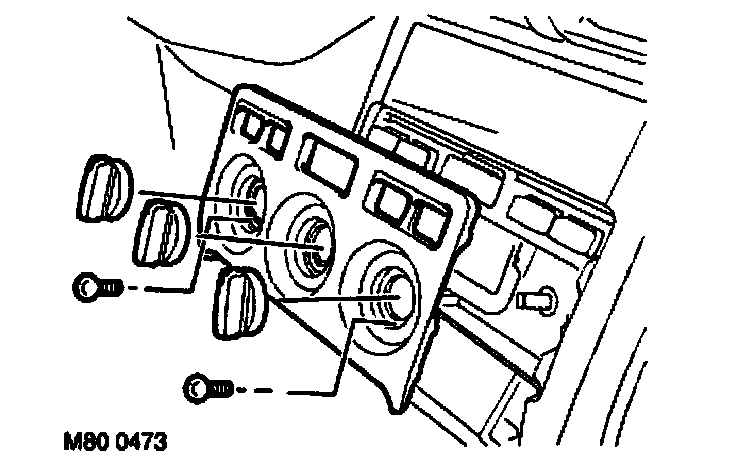

2. Remove selector knobs from heater controls.
3. Remove 2 screws securing heater control finisher to heater controls and remove finisher.

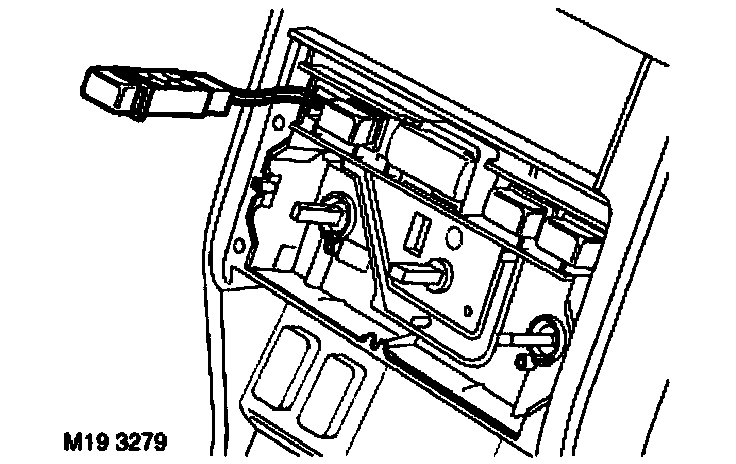

4. Release cruise control switch, disconnect multiplug and remove switch.

Refit
1. Position cruise control switch, connect multiplug and secure switch.
2. Fit heater control finisher to heater controls and secure with screws.
3. Fit heater control knobs.
4. Fit radio.
