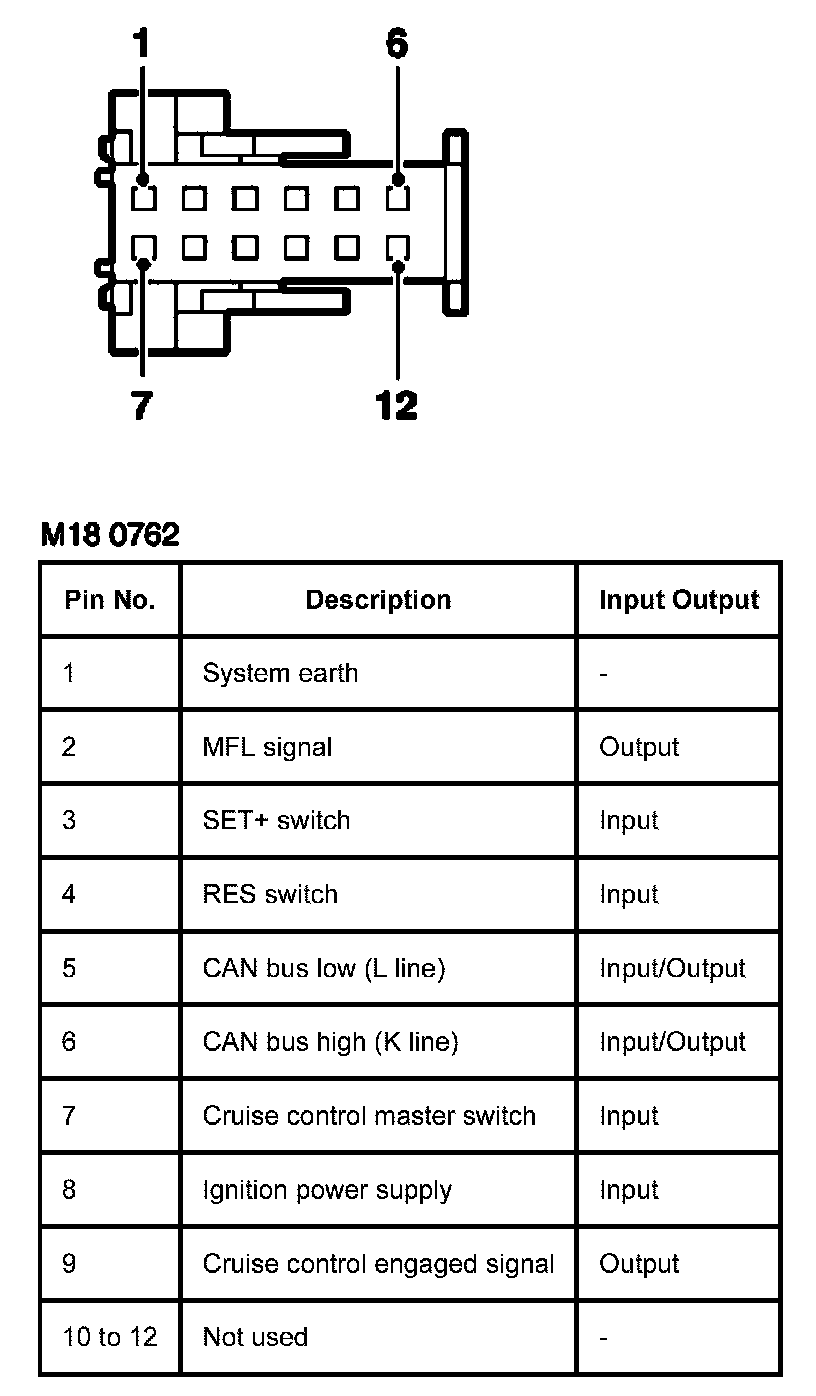

Interface ECU
Interface ECUThe interface ECU converts the analogue signals from the steering wheel switches into serial data messages, known as Multi-Function Logic (MFL) messages, which are interpreted by the ECM to operate
cruise control. The interface ECU also controls the output of a cruise engaged signal to the EAT ECU. The interface ECU is installed below the RH front seat, under a plastic protective cover.
