Interface ECU - Cruise Control - KV6

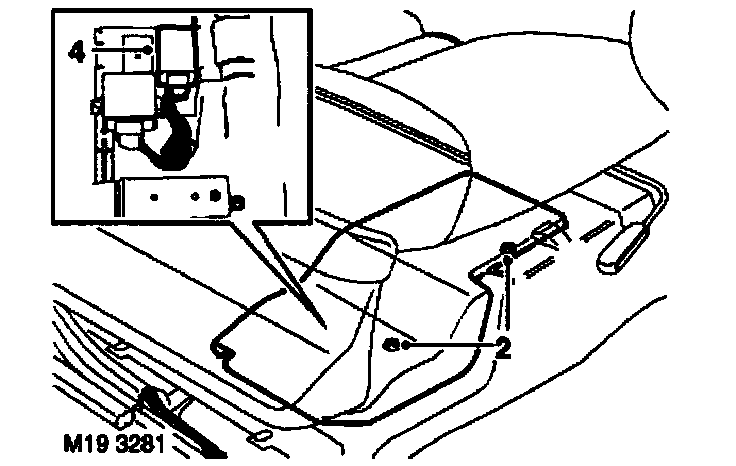

19.75.55 Interface ECU - Cruise Control - KV6Remove 1.
Slide RH front seat fully rearwards.
2.
Remove 2 screws securing ECU cover.
3.
Remove cover.
4.
Release interface ECU from bracket, disconnect multiplug and remove ECU.
Refit 1.
Position ECU, connect multiplug and secure ECU to bracket.
2.
Fit ECU cover and secure with screws.
3.
Position seat to mid position.
