Air Duct: Service and Repair

Plenum - Air Intake

Service Repair No - 80.15.62

Remove
1. Remove both wiper arms.

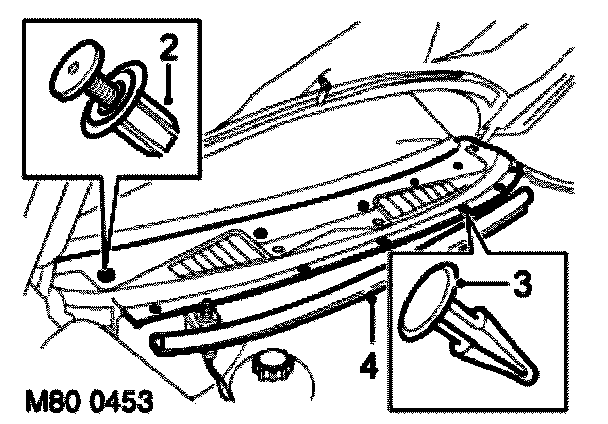

2. Remove 6 studs securing rear edge of air intake moulding.
3. Remove air intake moulding and bonnet sealing rubber.

NOTE: Do not carry out further dismantling if component is removed for access only.

4. Remove bonnet sealing rubber from air intake moulding.

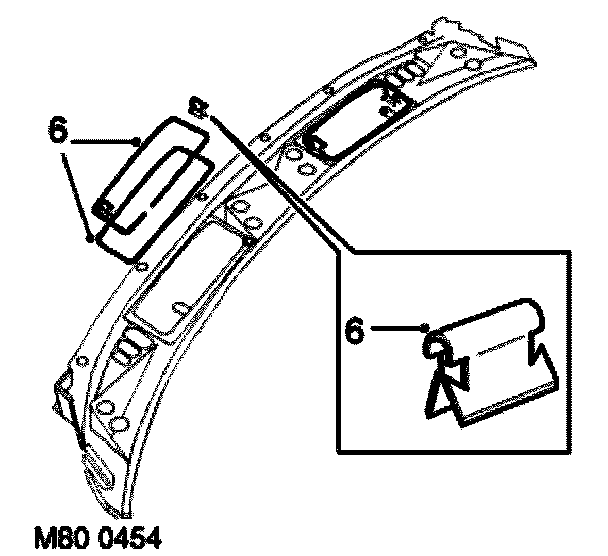

5. Remove 4 clips securing air intake filter retainers. Remove retainers and filters.

Refit
1. Fit filters and retainers to air intake moulding and secure with clips.
2. Fit bonnet sealing rubber to air intake moulding.
3. Fit air intake moulding and secure with studs.
4. Fit wiper arms.
