Ambient Temperature Sensor / Switch HVAC: Service and Repair

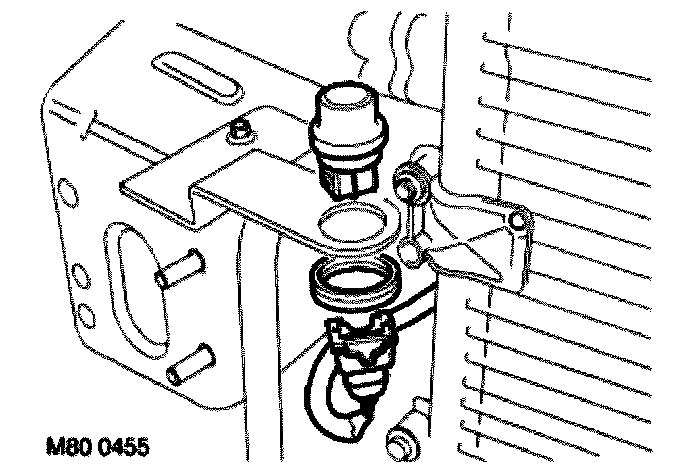

Sensor - Outside Temperature (OT) Service Repair No - 80.40.31Remove 1.
Remove front bumper.
2.
Disconnect multiplug from OT sensor.
3.
Remove OT sensor from mounting bracket, collect rubber washer and spacer.
Refit 1.
Clean OT mounting bracket and sensor.
2.
Fit OT sensor to mounting bracket, fit rubber washer and spacer, connect multiplug.
3.
Fit front bumper.
