Blower Motor Resistor: Service and Repair
Resistor Unit - Fan Motor Service Repair No - 80.20.17

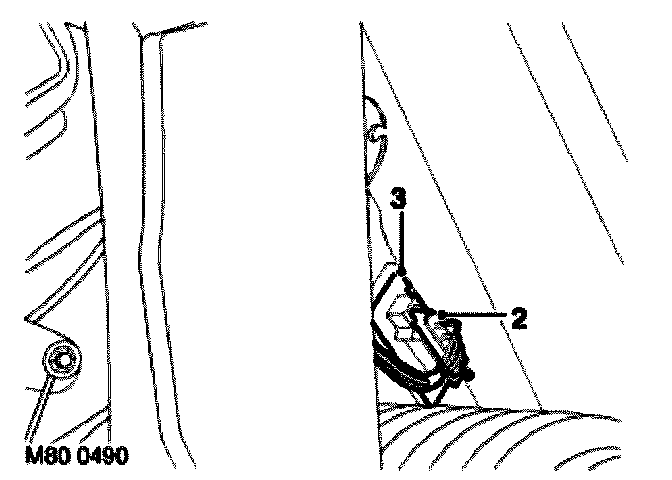

Remove 1.
LHD models only: Disconnect air inlet connector hose from heater and evaporator.
2.
Disconnect multiplug from resistor.
3.
Release clip and remove resistor from heater.
Refit 1.
Fit resistor to heater.
2.
Connect multiplug to resistor.
3.
LHD models only: Connect air inlet connector hose.
