Blower Motor: Service and Repair
Blower Assembly Service Repair No - 80.20.12Remove 1.

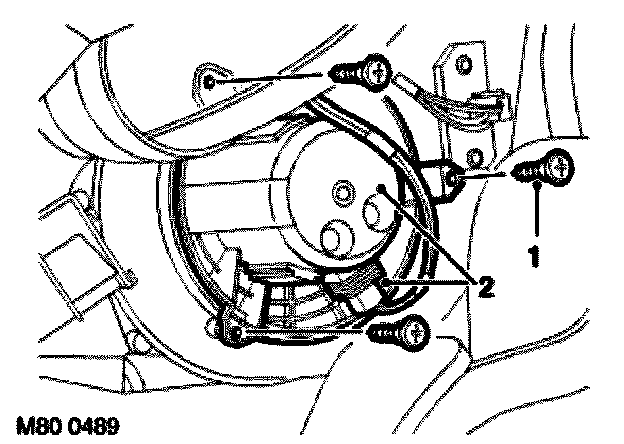

Remove 3 screws securing fan motor assembly to heater casing.
2.
Release fan assembly from heater and disconnect multiplug.
3.
Remove fan assembly.
Refit 1.
Position fan assembly to heater and connect multiplug.
2.
Fit fan assembly to heater casing and secure with screws.
