Controls - Heater - From MY04

Controls - Heater - From 04MY

Service Repair No - 80.10.02

Remove
1. Remove the Radio/CD module.

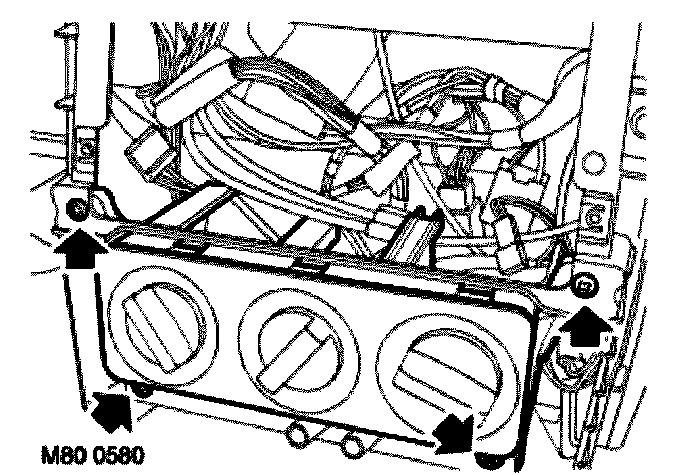

2. Remove 4 screws securing heater controls to fascia.
3. Move heater control assembly to access cables.

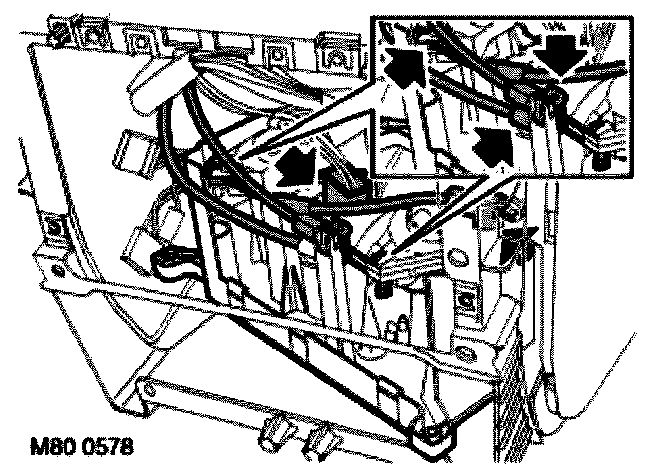

4. Release air distribution cables from control knobs and abutments.
5. Disconnect 3 multiplugs from heater control assembly.
6. Remove heater controls.

Refit
1. Fit heater control assembly to vehicle.
2. Connect multiplugs.
3. Connect heater control cables and secure to abutment with clips.
4. Position heater control panel, fit and tighten screws.
5. Fit Radio/CD module.
