Switch - Control
Remove 1.
Remove radio.
2.

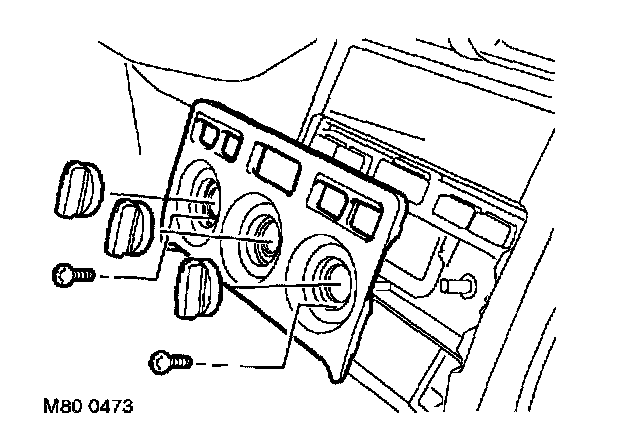

Remove 3 heater control knobs.
3.
Remove 2 screws securing heater control finisher to heater controls and remove finisher.
4.

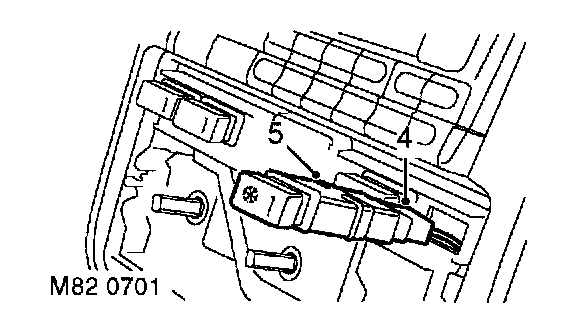

Disconnect multiplug from A/C control switch.
5.
Remove switch from heater controls.
Refit 1.
Fit A/C control switch and connect multiplug.
2.
Fit heater control finisher and secure with screws.
3.
Fit heater control knobs.
4.
Fit radio.
