Switch - Fan - Front Heater
Remove 1.
Remove front console.
2.

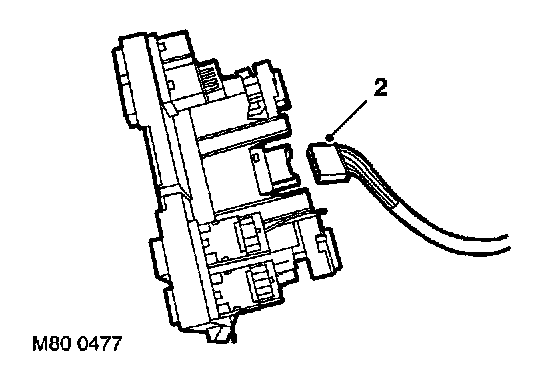

Disconnect multiplug from switch.
3.

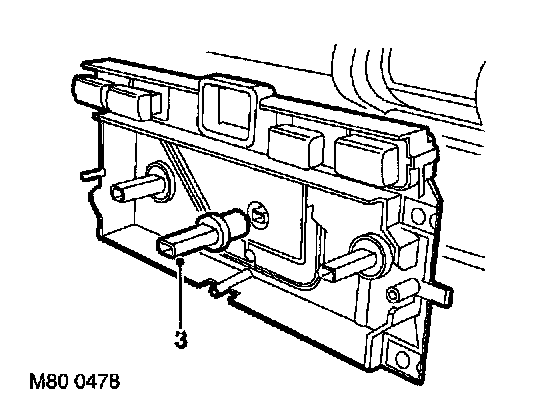

Remove drive shaft from switch.
4.

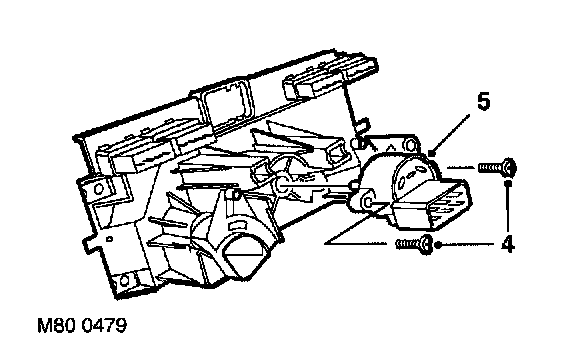

Remove 2 screws securing switch to heater controls.
5.
Remove switch.
Refit 1.
Fit switch to heater controls and secure with screws.
2.
Fit drive shaft to switch.
3.
Connect multiplug to switch.
4.
Fit front console.
