Switch - Recirculation Control
Remove 1.
Remove 3 heater control knobs.
2.
Remove 2 screws securing heater control finisher to heater controls and remove finisher.
3.

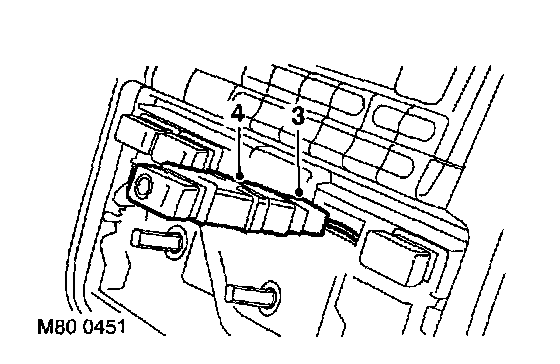

Release switch and disconnect multiplug.
4.
Remove switch.
Refit 1.
Fit recirculation switch to heater control panel and connect multiplug.
2.
Fit heater control finisher to heater controls and secure with screws.
3.
Fit heater control knobs.
