Heater Core: Service and Repair

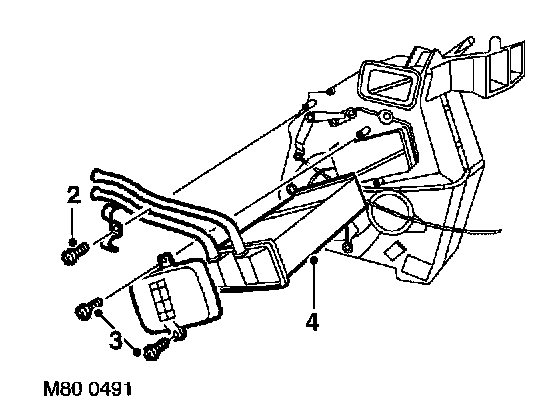

Matrix - Heater Service Repair No - 80.20.29 Remove 1.
Remove heater assembly.
2.
Remove screw securing pipe clamp to heater casing and remove clamp.
3.
Remove 2 screws from matrix cover and remove cover.
4.
Remove heater matrix.
Refit 1.
Fit heater matrix to heater assembly.
2.
Fit matrix cover and secure with screws.
3.
Fit pipe clamp and secure with screw.
4.
Fit heater assembly.
