Fog/Driving Lamp: Service and Repair

Lamp Assembly - Fog Driving - From 04MY

Service Repair No - 86.40.96

Remove

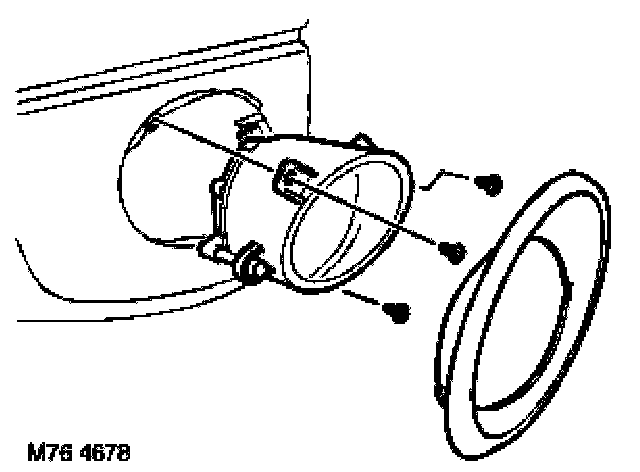

1. Release and remove fog/driving lamp finisher from bumper.
2. Remove 3 screws securing fog/driving lamp to bumper.
3. Release fog/driving lamp from bumper, disconnect multiplug and remove lamp.

Refit
1. Position fog/driving lamp to bumper and connect multiplug.
2. Fit fog/driving lamp to bumper and secure lamp with screws.
3. Fit fog/driving lamp finishers to bumper.
