Ground Locations

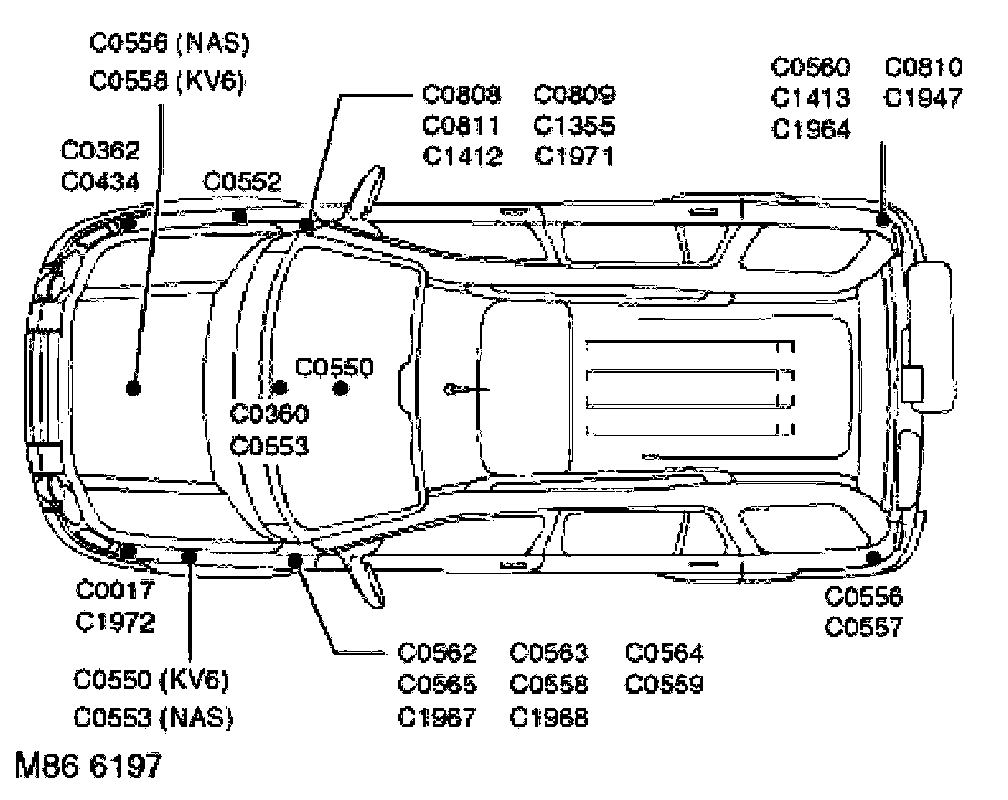

Earth Points And HeadersThe following illustration indicates the general position of each earth point and header on the vehicle. Refer to the Connector section for more information.
Refer to the Circuit Diagrams for details of electrical components and their associated earth points.
