Rear Wheel Alignment

Rear Wheel Alignment - Check and Adjust

Service Order No - 57.65.06

Check
1. Ensure tire pressures are correct and vehicle is at curbside weight.
2. Roll vehicle backwards and forwards to relieve stresses in steering and suspension.
3. Ensure that wheel alignment equipment is properly calibrated.
4. Check front wheel alignment is within tolerance.
5. Check rear wheel alignment is within tolerance.

Adjust

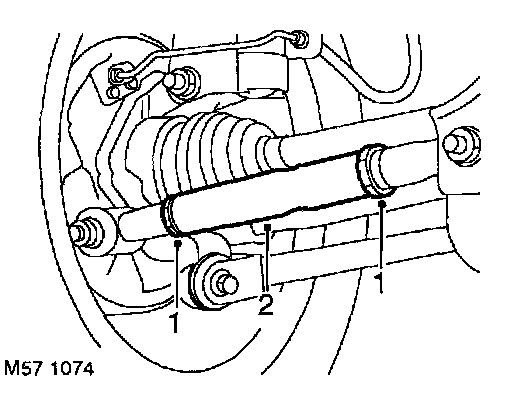

1. Hold turnbuckle on adjustable link and loosen both lock nuts.
2. Rotate turnbuckle to obtain correct alignment.
3. Hold turnbuckle and tighten lock nuts to 90 Nm (66 ft. lbs.).
4. Roll vehicle backwards and forwards to relieve stress in suspension.
5. Repeat check and adjust procedure on other side of vehicle.
