Power and Ground Distribution: Service and Repair

86.70.01 Fuse Box - Passenger Compartment

Remove
1. Disconnect battery earth lead.
2. Open glove box.
3. Remove hinge pins and lid.
4. Remove fuse box cover.

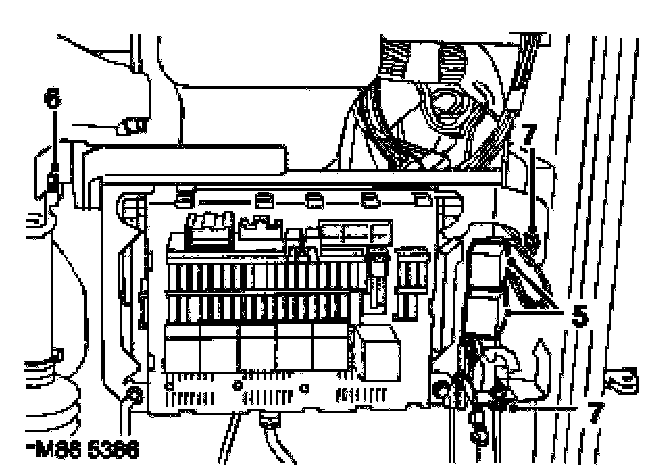

5. Remove relays from fuse box mounting plate.
6. Remove bolt securing fuse box mounting plate to steering column bracket.
7. Remove 2 bolts securing mounting plate to body.
8. Remove 2 bolts securing fuse box to mounting plate.

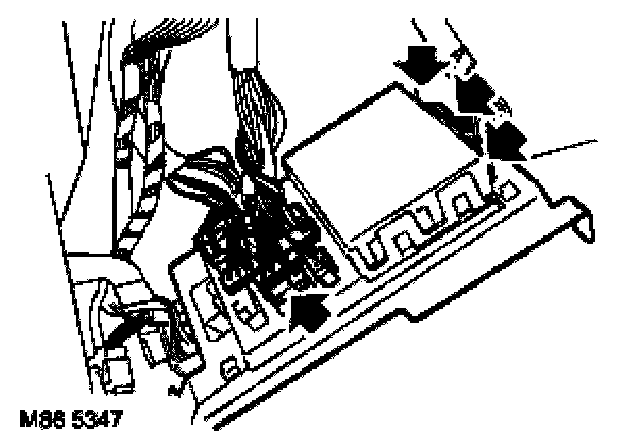

9. Disconnect 3 multiplugs from CCU in rear of fuse box.
10. Release fusebox and disconnect 8 multiplugs.
11. Remove fusebox.
12. Remove fuses and relays from fuse box.

Refit
1. Identify and fit fuses.
2. Fit relays.
3. Fit fuse box.
4. Connect multiplugs to fusebox.
5. Connect multiplugs to CCU.
6. Fit bolts securing fuse box to mounting plate and tighten to 8 Nm (6 lbf.ft).
7. Fit bolts securing fuse box mounting plate to body and tighten to 8 Nm (6 lbf).
8. Fit relays to mounting plate.
9. Fit fuse box cover.
10. Fit glove box lid and hinge pins.
11. Close lid.
12. Connect battery earth lead.
