Engine Control Module: Service and Repair

Engine Control Module (ECM) - Fuel - NAS

Service repair no - 18.30.03

Remove
1. Disconnect battery earth lead.

2. Remove 5 Allen screws and 'E' box cover.

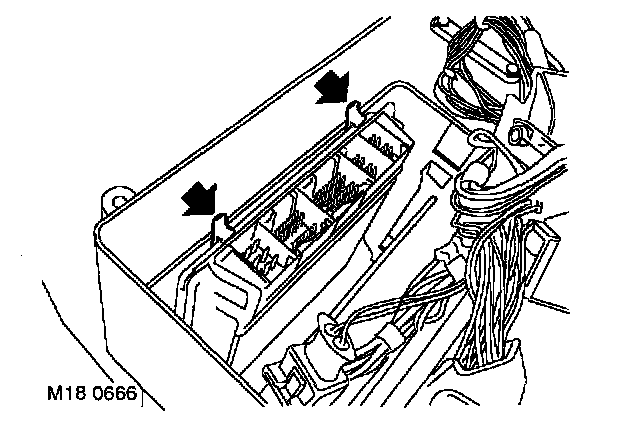

3. Disconnect 5 multiplugs from engine ECM.

4. Release 2 clips and remove ECM.

Refit
1. Fit ECM and connect multiplugs.
2. Fit 'E' box cover and tighten Allen screws to 2 Nm (1.5 ft. lbs.).
3. Connect battery earth lead.
4. Initiate ECM using TestBook.
