Sensor - Throttle Position (TP) - NAS

Sensor - Throttle Position (TP) - NAS

Service Repair No - 19.22.49

Remove
1. Disconnect battery earth lead.

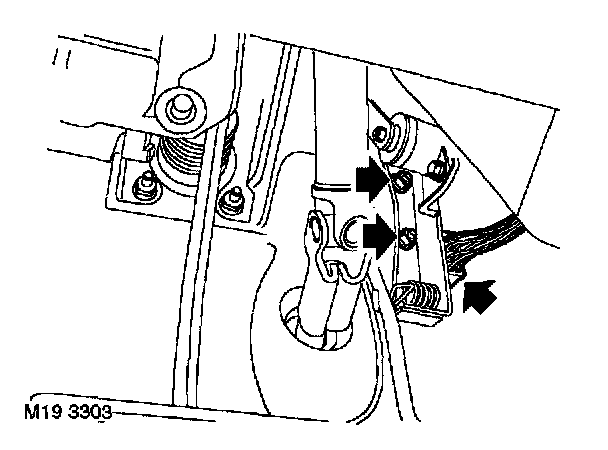

2. Remove 2 nuts and release throttle pedal from studs.
3. Release TP sensor multiplug from bracket and disconnect from main harness.

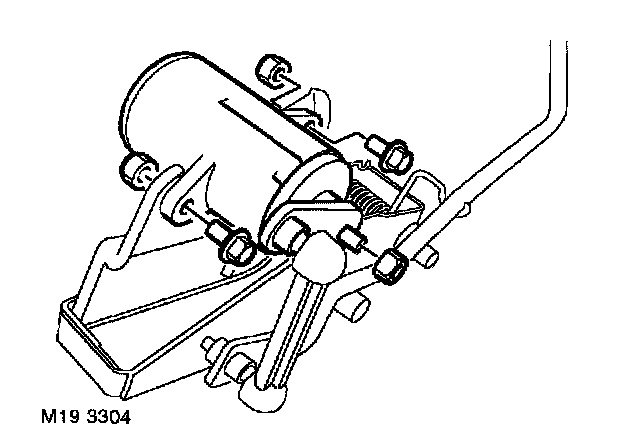

4. Remove nut and release lever from sensor.
5. Remove 2 nuts and bolts and remove sensor.

Refit
1. Fit TP sensor and tighten nuts and bolts to 10 Nm (7 ft. lbs.).
2. With throttle pedal held closed, fit lever to sensor and tighten nut to 10 Nm (7 ft. lbs.).
3. Position throttle pedal, connect multiplug and secure to pedal bracket.
4. Fit pedal to studs and tighten nuts to 25 Nm (18 ft. lbs.).
5. Connect battery earth lead.
6. Use TestBook to confirm correct operation.
