Leak Detector: Service and Repair


Module - Tank Leakage Diagnostic (DMTL)

Service Repair No - 17.45.41

Remove
1. Disconnect battery earth lead.
2. Remove RH rear wheel arch liner.

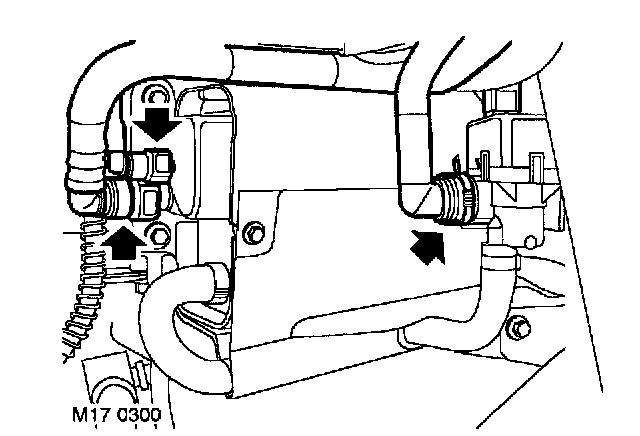

3. Release and disconnect pipes from charcoal canister and DMTL.


CAUTION: Before disconnecting or removing components, ensure the immediate area around joint faces and connections are clean. Plug open connections to prevent contamination.

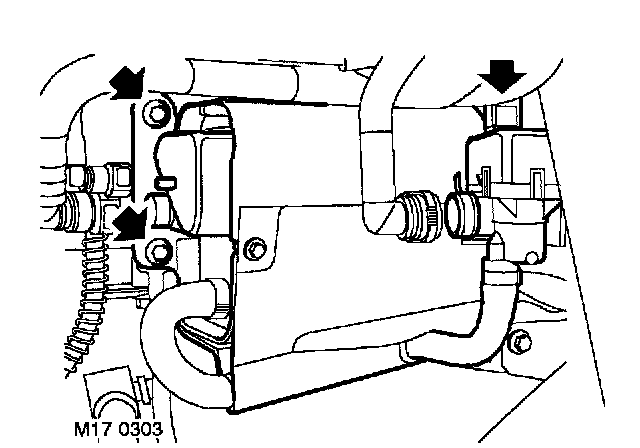

4. Remove 2 bolts securing canister support bracket and release assembly from mounting.
5. Disconnect multiplug from DMTL and remove canister and valve assembly.

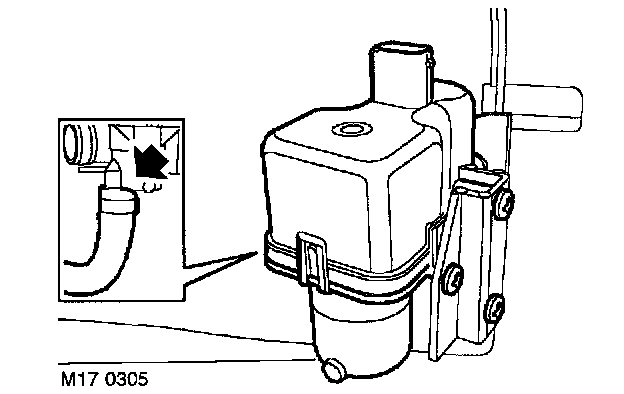

6. Release clip and disconnect hose from DMTL.


CAUTION: Before disconnecting or removing components, ensure the immediate area around joint faces and connections are clean. Plug open connections to prevent contamination.


7. Remove 3 screws and remove DMTL.

Refit
1. Fit DMTL and secure with screws.
2. Connect hose and secure with clip.
3. Position canister assembly and connect multiplug.
4. Fit canister assembly to mounting and tighten bolts to 4 Nm (3 ft. lbs.).
5. Connect pipes to DMTL and canister.
6. Fit wheel arch liner.
7. Connect battery earth lead.
