Power Window Control Module: Service and Repair

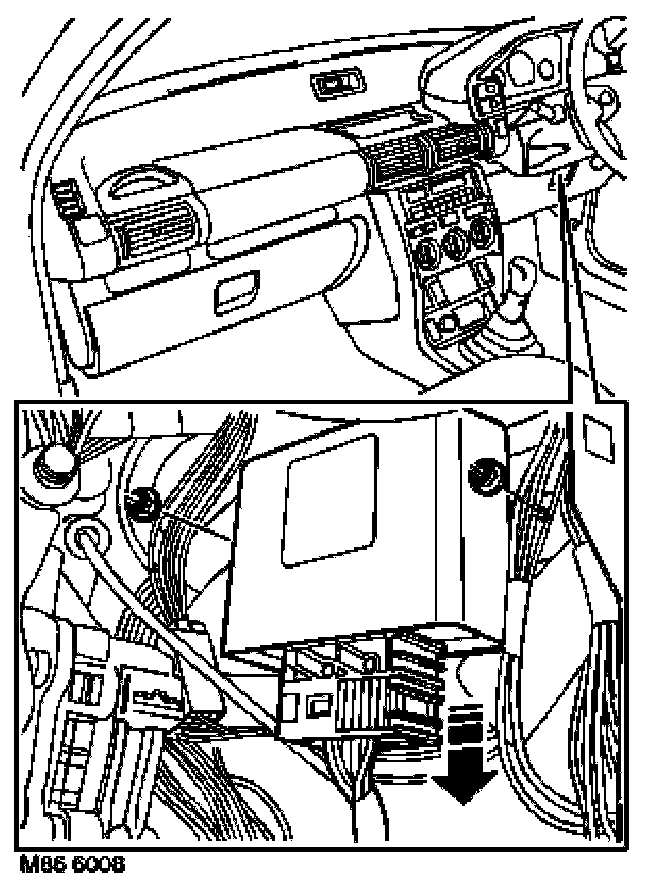

Control Unit - Window Lift
Service Repair No - 86.25.39Remove 1.
Remove driver's side fuse box.
2.
Remove 2 nuts securing window lift
control unit and release unit from studs.
3.
Disconnect multiplug from window lift
control unit and remove unit from vehicle.
Refit 1.
Connect multiplug to window lift
control unit.
2.
Position unit and secure with 2 nuts.
3.
Fit fuse box.
