86.15.01 Battery

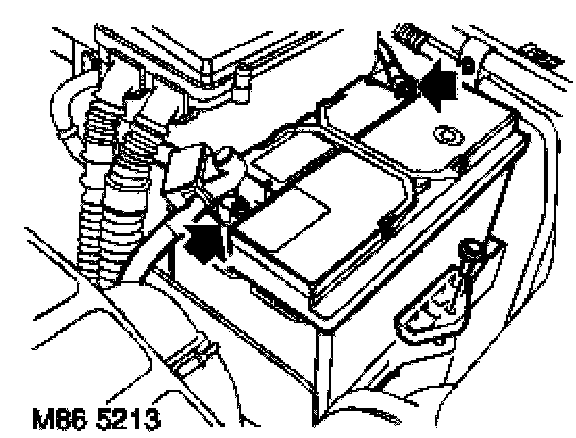

86.15.01 BatteryRemove 1.
Disconnect both battery terminals, earth lead first.
2.
Remove bolt and battery clamp.
3.
Remove battery.
Refit 1.
Clean battery tray.
2.
Fit battery and clamp, tighten bolt to
12 Nm (
9 lbf.ft).
3.
Apply petroleum jelly to both terminals, fit and tighten terminal bolts negative lead last.
