Shift Interlock Cable: Adjustments

Cable - Key Interlock - Adjust
Check
1. Select position "P".
2. Remove key from starter switch.
3. Check that selector lever cannot be moved from "P" position.
4. Insert and turn key to position 11.
5. Depress brake pedal and check that selector lever can be moved from "P" position, and key cannot be removed from starter switch. Key should only rotate back to a position between 1 and 0.

Adjust
1. Select position "P".
2. Remove key from starter switch.
3. Remove front console.

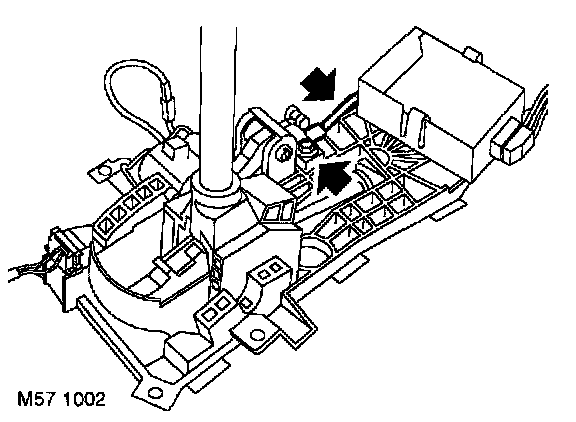

4. Loosen bolt securing cable clamp.
5. Pull cable away from interlock mechanism until spring pressure is felt. Correct adjustment is cable free play removed without compressing spring. When correct tighten interlock cable clamp screw to 6 Nm (4.5 ft. lbs.).
6. Recheck cable operation.
7. Fit front console.
