Shift Cable: Service and Repair

Selector cable
Remove
1. Remove front console.

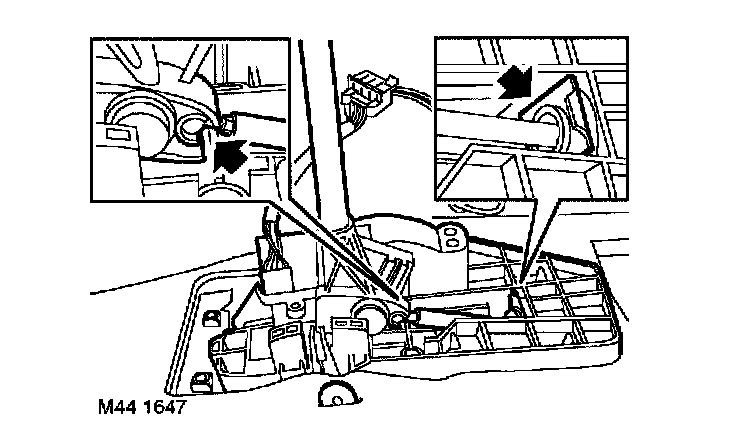

2. Release inner cable from selector lever.
3. Remove 'C' clip securing outer cable to selector housing.
4. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

5. Remove underbelly panel.
6. Remove cable tie and release gear selector cable from clip on body.





7. Loosen selector cable trunnion nut.
8. Release clip securing selector cable to gearbox bracket, remove selector cable and collect trunnion from selector lever.

Refit
1. Position trunnion to selector lever, locate inner cable through trunnion, do not tighten nut at this stage.
2. Position selector cable to gearbox bracket and secure with clip.
3. Locate cable in selector housing and secure outer cable in clip.
4. Secure outer cable to selector housing with 'C' clip.
5. Secure inner cable to selector lever.
6. Fit front console.
7. Check and adjust selector cable.
8. Fit underbelly panel.
9. Remove stands and lower vehicle.
