Heated Glass Element Relay: Service and Repair

Relay - Heated Front Screen

Service Repair No - 86.55.18

Remove

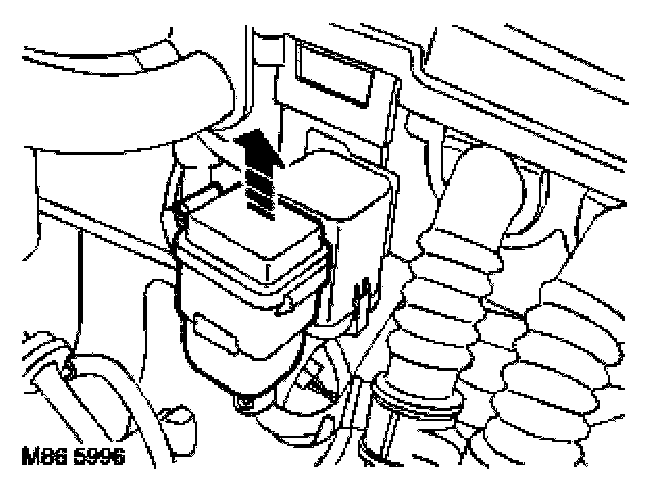

1. Release heated front screen fuse holder from heated front screen relay holder.

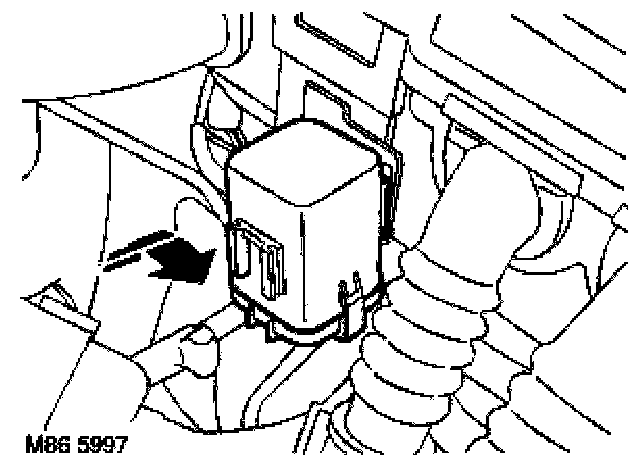

2. Release heated front screen relay holder from 'E' box bracket.

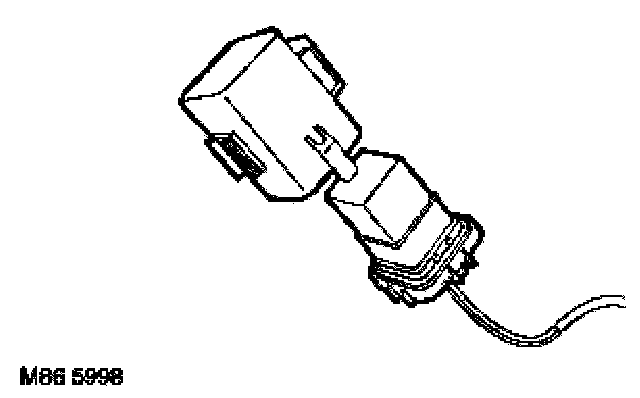

3. Remove cover from heated front screen relay.
4. Remove heated front screen relay.

Refit
1. Fit heated front screen relay.
2. Ensure cover seal is fitted correctly and fit heated front screen relay cover.
3. Fit heated front screen relay holder to 'E' box bracket.
4. Fit heated front screen fuse holder to heated front screen relay holder.
