Heated Glass Element Switch: Service and Repair

Switch - Backlight Heater

Service Repair No - 86.65.36

Remove
1. Remove radio.

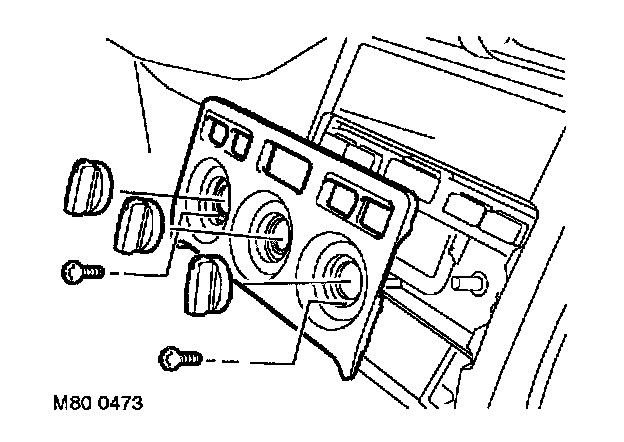

2. Remove selector knobs from heater controls.
3. Remove 2 screws securing heater control finisher to heater controls and remove finisher.
4. Release heated rear screen switch from heater controls.





5. Disconnect multiplug from heated rear screen switch and remove switch.

Refit
1. Position heated rear screen switch and connect multiplug.
2. Fit switch to heater control panel.
3. Fit heater control finisher to heater controls and secure with screws.
4. Fit heater control knobs.
5. Fit radio.
