Power Window Switch: Service and Repair


Switch - Master Window - 5 Door - From 04MY

Service Repair No - 86.25.08

The procedure to remove the window lift and door panic lock switches is similar to the one shown below.

Remove

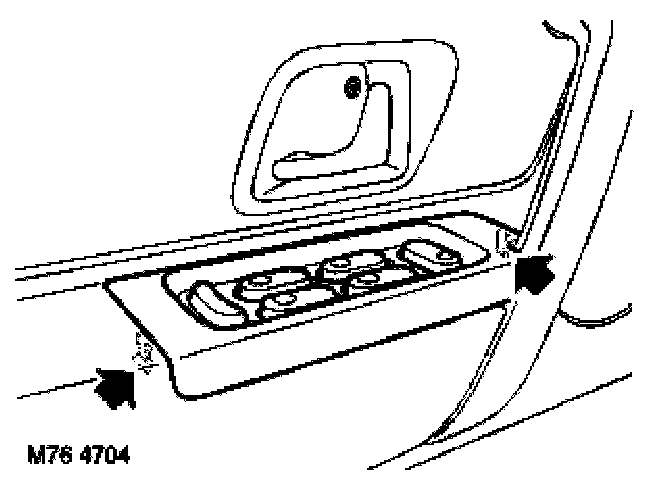

1. Carefully release window lift switch pack from door trim casing.

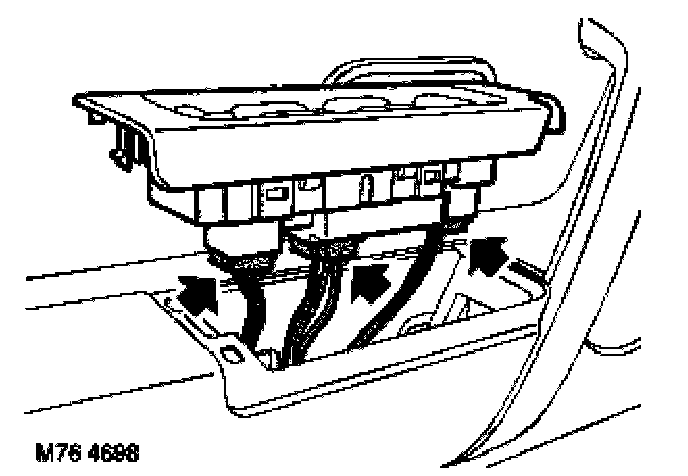

2. Disconnect 3 multiplugs from window lift switch pack and remove switch pack.

NOTE: Do not carry out further dismantling if component is removed for access only.

3. Carefully release and remove window lift switch pack from bezel.

Refit
1. Fit window lift switch pack to bezel.
2. Position switch pack, connect multiplugs and secure switch pack to trim casing.
