Front Door Window Glass: Service and Repair

Glass - Front Door

Service Repair No - 76.31.01

Remove

1. Remove front door plastic sheet.

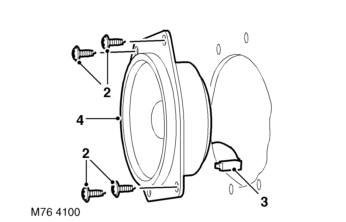

2. Remove 4 screws securing speaker to door.
3. Disconnect multiplug from door speaker.
4. Remove front door speaker.

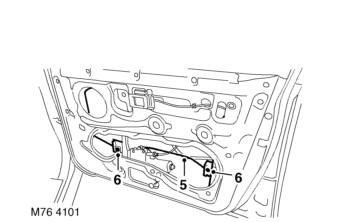

5. Lower glass to access clamp bolts.
6. Loosen 2 bolts securing glass to clamps.

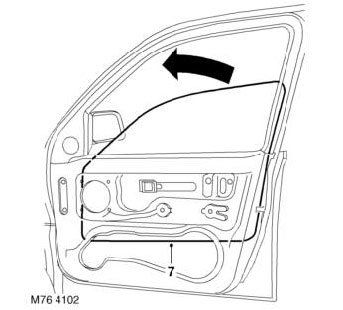

7. Release glass from clamps, raise and rotate glass to remove from door frame.

Refit

1. Locate glass in door frame and rotate into position to engage seal and clamps.
2. Tighten glass clamp bolts to 9 Nm (7 ft. lbs.).
3. Raise and lower glass to check operation.
4. Position speaker to door and connect multiplug.
5. Fit speaker to door and secure with screws.
6. Fit front door plastic sheet.
