Windshield Washer Pump: Service and Repair

Pump - Washer

Service Repair No - 84.30.21

Remove
1. Remove front bumper.
2. Position container to catch windscreen washer fluid.

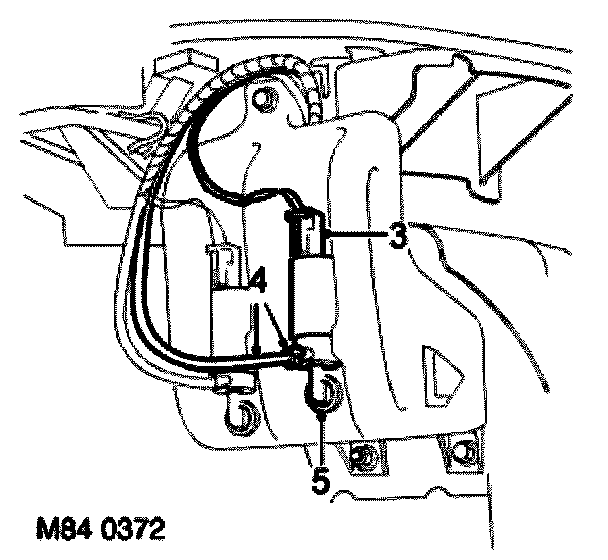

3. Disconnect multiplug from washer pump.
4. Release hose from pump.
5. Remove washer pump from reservoir and remove and discard pump seal.

Refit
1. Fit new pump sealing grommet to reservoir.
2. Fit pump to reservoir.
3. Connect hose and multiplug to pump.
4. Fit front bumper.
