Wiper Motor Linkage: Service and Repair

Motor and Linkage - Wiper

Service Repair No - 84.15.11

Remove
1. Remove air intake moulding.

2. Disconnect multiplug from windscreen wiper motor.

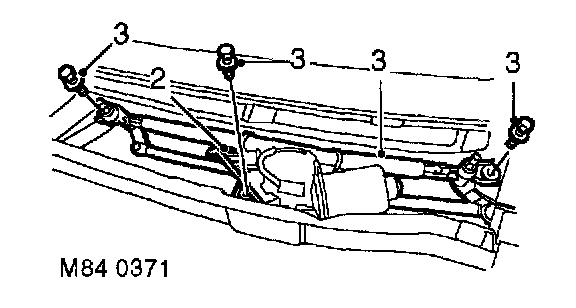

3. Remove 3 bolts securing wiper motor and linkage to body and remove wiper motor and linkage.

Refit
1. Fit motor and linkage to body, fit bolts and tighten to 5 Nm (3.5 ft. lbs.).
2. Connect multiplug to windscreen wiper motor.
3. Fit air intake moulding.
