Wiper Relay: Service and Repair
Relay - Tailgate Wipe - 5 Door
Service Repair No - 84.35.38Remove 1.
Remove RH rear quarter lower trim casing.
2.

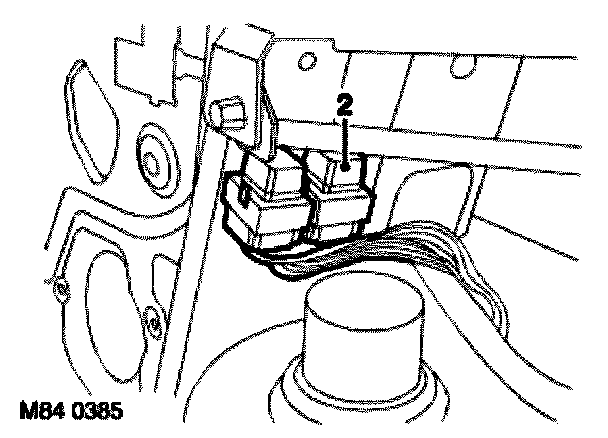

Remove rear wiper motor relay.
Refit 1.
Fit rear wiper motor relay.
2.
Fit RH rear quarter lower casing.
