Fuse Block: Service and Repair

86.70.01 Fuse Box - Passenger Compartment

Before disconnecting the battery, ensure all text and cautions in the battery disconnection section are observed.

Remove
1. Disconnect battery earth lead.
2. Remove glove box.





3. Noting fitted position, disconnect 8 multiplugs from fuse box.

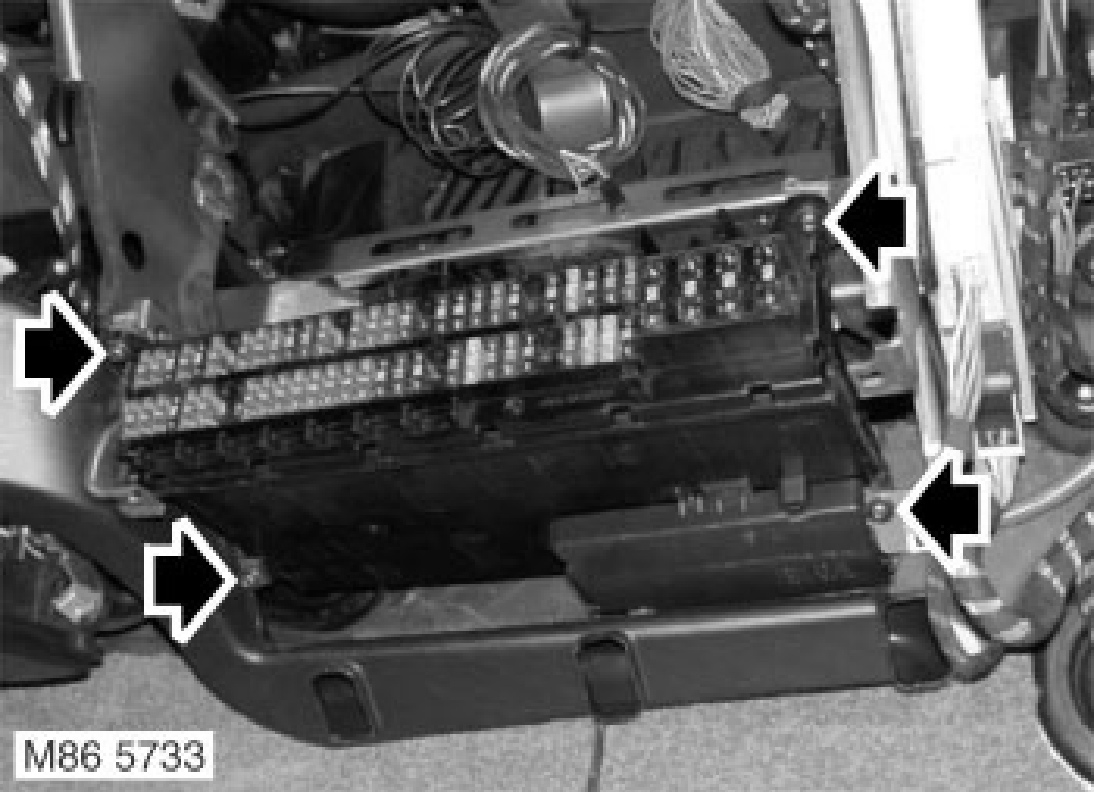

4. Remove 4 Torx screws securing fuse box and position fuse box aside.

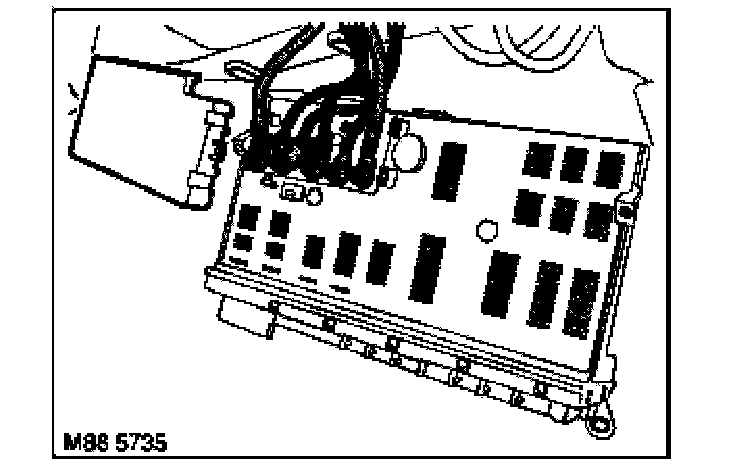

5. Remove upper fusible link cover.
6. Remove nut securing positive cable to fuse box, position cable aside.

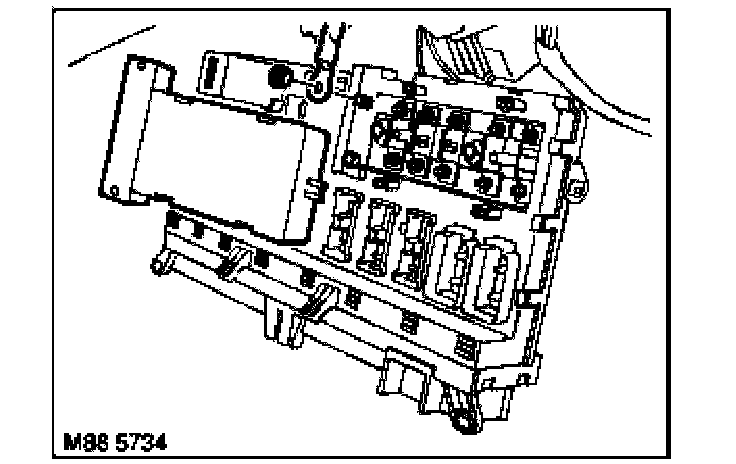

7. Invert fuse box and remove lower fusible link cover.
8. Noting fitted position remove nuts securing fusible link cables, position cables aside.
9. Remove fusebox.

NOTE: Do not carry out further dismantling if component is removed for access only.

10. Remove fuses and relays from fuse box.

Refit
1. Fit fuses and relays to fuse box.
2. Position fuse box, connect fusible link cables, fit nuts and tighten to 8 Nm (6 lbf.ft).
3. Fit lower fusible link cover.
4. Position positive cable to fuse box, fit nut and tighten to 15 Nm (11 lbf.ft).
5. Fit upper fusible link cover.
6. Position fuse box and secure with screws.
7. Connect multiplugs to fusebox.
8. Fit glove box.
9. Connect battery earth lead.
