Accelerator Pedal Position Sensor: Service and Repair

19.20.01 Sensor - Accelerator Pedal Position (APP)

The APP sensor is not serviced separately from the throttle pedal.

Before disconnecting the battery, ensure all text and cautions in the battery disconnection section are observed.

Remove
1. Disconnect battery earth lead.

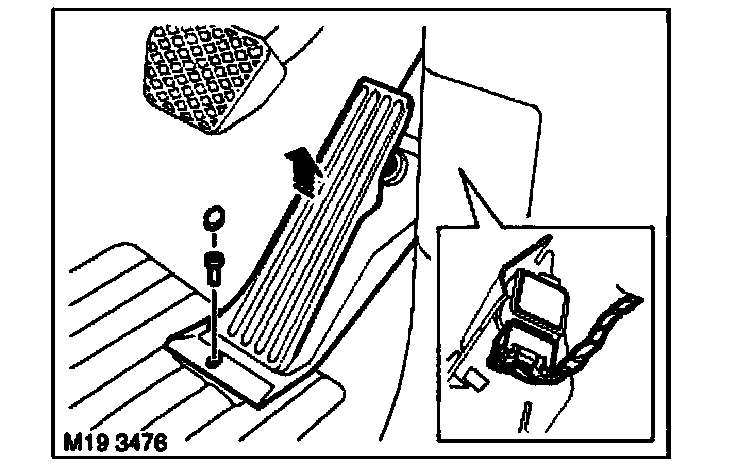

2. Remove cap from screw and remove Allen screw securing throttle pedal.
3. Release pedal from bracket, disconnect multiplug from APP sensor and remove pedal.

Refit
1. Position throttle pedal and connect multiplug to APP sensor.
2. Fit pedal to bracket, tighten Allen screw to 10 Nm (7 lbf.ft) and fit cap to screw.
3. Connect battery earth lead.
4. If a replacement sensor has been fitted, re-set adaptions using TestBook/T4.
