Brake Signal: Service and Repair



19.75.35 Sensor - Brake Pedal Position

Remove

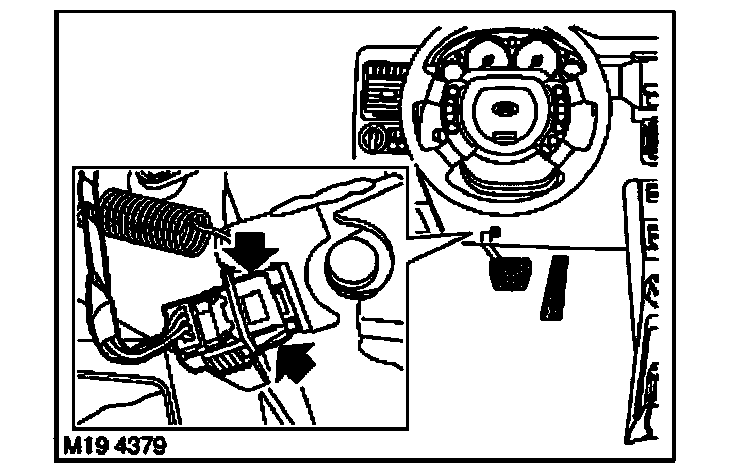

1. Release brake pedal position sensor from holder, disconnect multiplug and remove sensor.
2. Remove holder from pedal bracket.

Refit
1. Fit holder to pedal bracket.
2. Position brake pedal position sensor, connect multiplug and secure to holder.
3. With brake pedal released, ensure brake pedal position sensor is in contact with operating tang on brake pedal.
4. If a replacement sensor has been fitted, re-set adaptions using TestBook/T4.
