Central Electronics Box: Service and Repair

18.30.77 Sensor - Temperature - 'E' box

Before disconnecting the battery, ensure all text and cautions in the battery disconnection section are observed.

Remove
1. Disconnect battery earth lead.

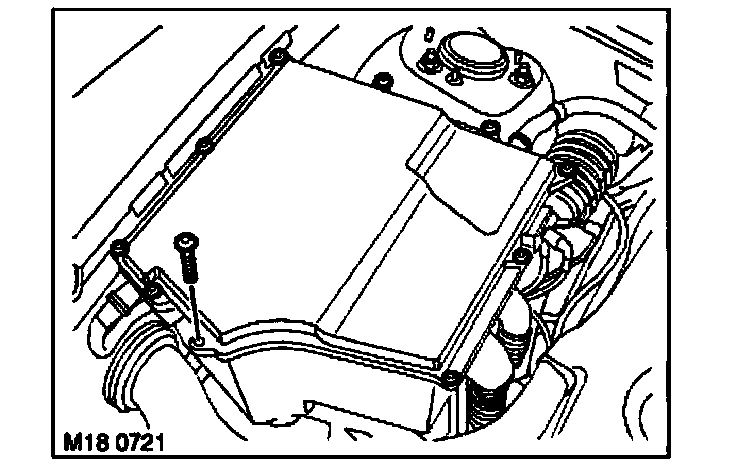

2. Remove 10 Allen screws securing 'E' box cover and remove cover.

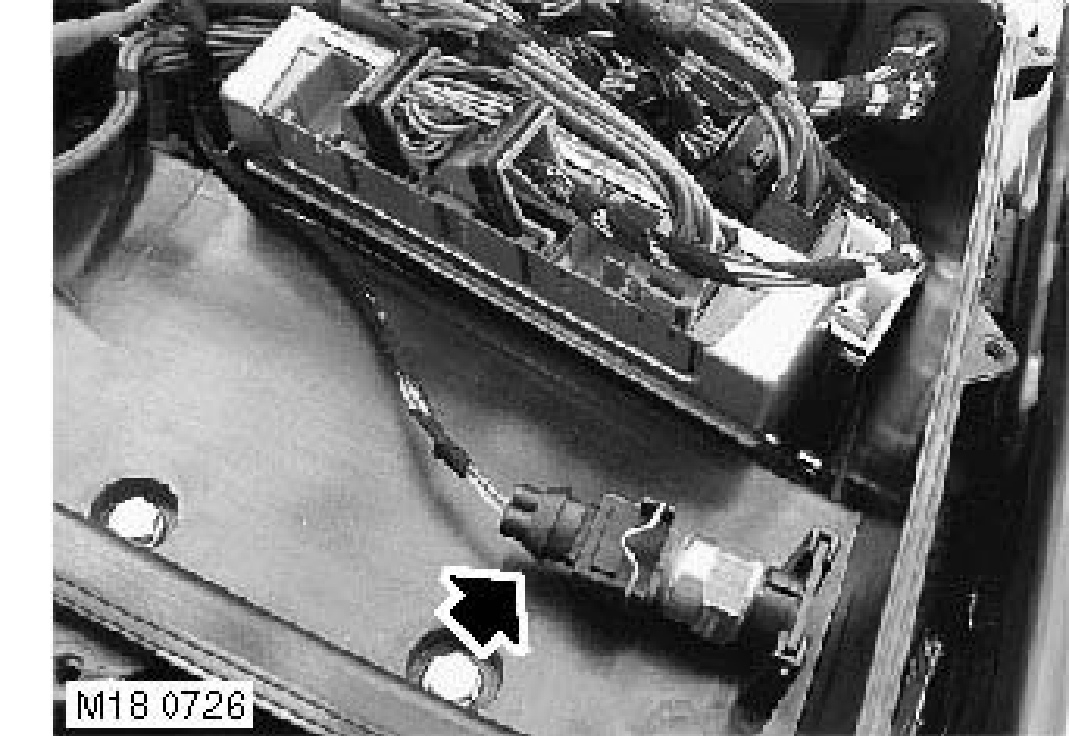

3. Disconnect multiplug from 'E' box temperature sensor.
4. Remove 'E' box temperature sensor.

Refit
1. Fit 'E' box temperature sensor to mounting.
2. Connect multiplug to 'E' box temperature sensor.
3. Fit 'E' box cover and tighten Allen screws to 2 Nm (1.5 lbf.ft).
4. Connect battery earth lead.
5. If a replacement sensor has been fitted, re-set adaptions using TestBook/T4.
