Ignition Relay: Service and Repair

18.20.05 Relay - Ignition Coils

Before disconnecting the battery, ensure all text and cautions in the battery disconnection section are observed.

Remove
1. Disconnect battery earth lead.

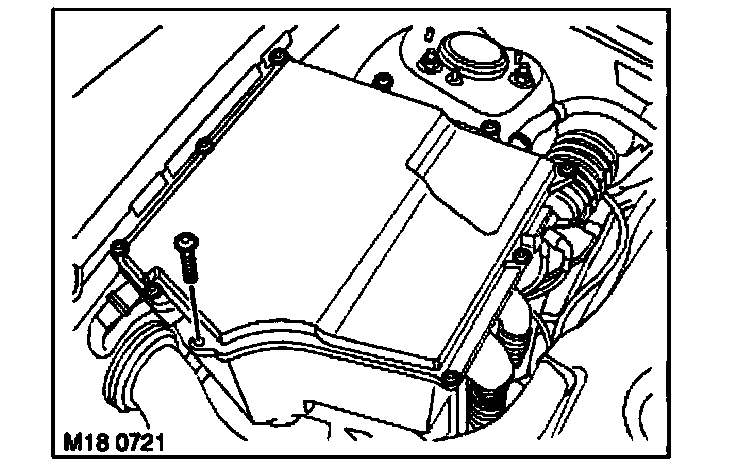

2. Remove 10 Allen screws securing 'E' box cover and remove cover.





3. Release relay from 'E' box and disconnect multiplug.

Refit
1. Position relay, connect multiplug and fit relay to 'E' box.
2. Fit 'E' box cover and tighten Allen screws to 2 Nm (1.5 lbf.ft).
3. Connect battery earth lead.
