Fuse - Transfer Gearbox - Electronic Control Unit (ECU)

41.20.75 Fuse - transfer gearbox - electronic control unit (ECU)
Remove





1. Remove battery carrier.

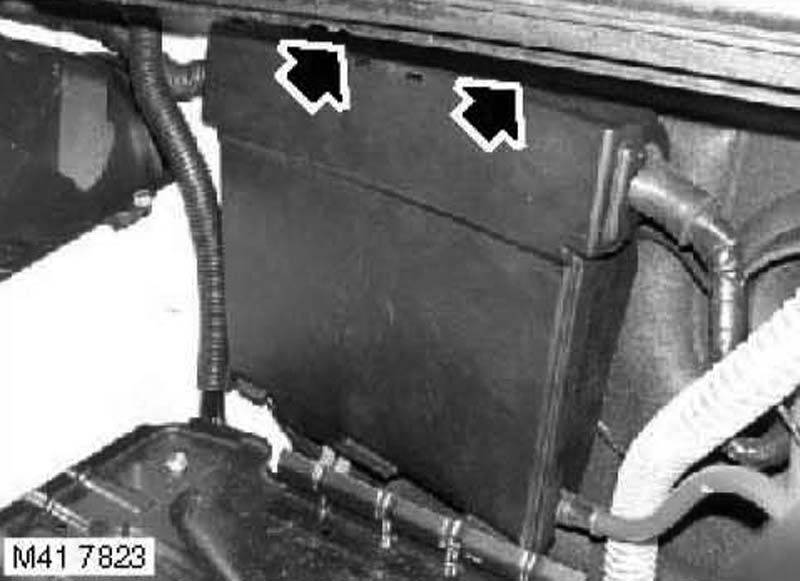

2. Release clips securing ECU cover to bulkhead. Remove cover.
3. Carefully release 2 clips and remove fuse box cover.
4. Locate fuse, remove 2 nuts and collect spacers. Remove and discard fuse.

Refit
1. Ensure fuse box terminals are clean.
2. Position fuse, fit spacers and nuts, tighten to 6 Nm (4.4 ft. lbs.).
3. Fit fuse box cover.
4. Fit and secure ECU cover.
5. Fit battery carrier.
