Symptom Related Diagnostic Procedures

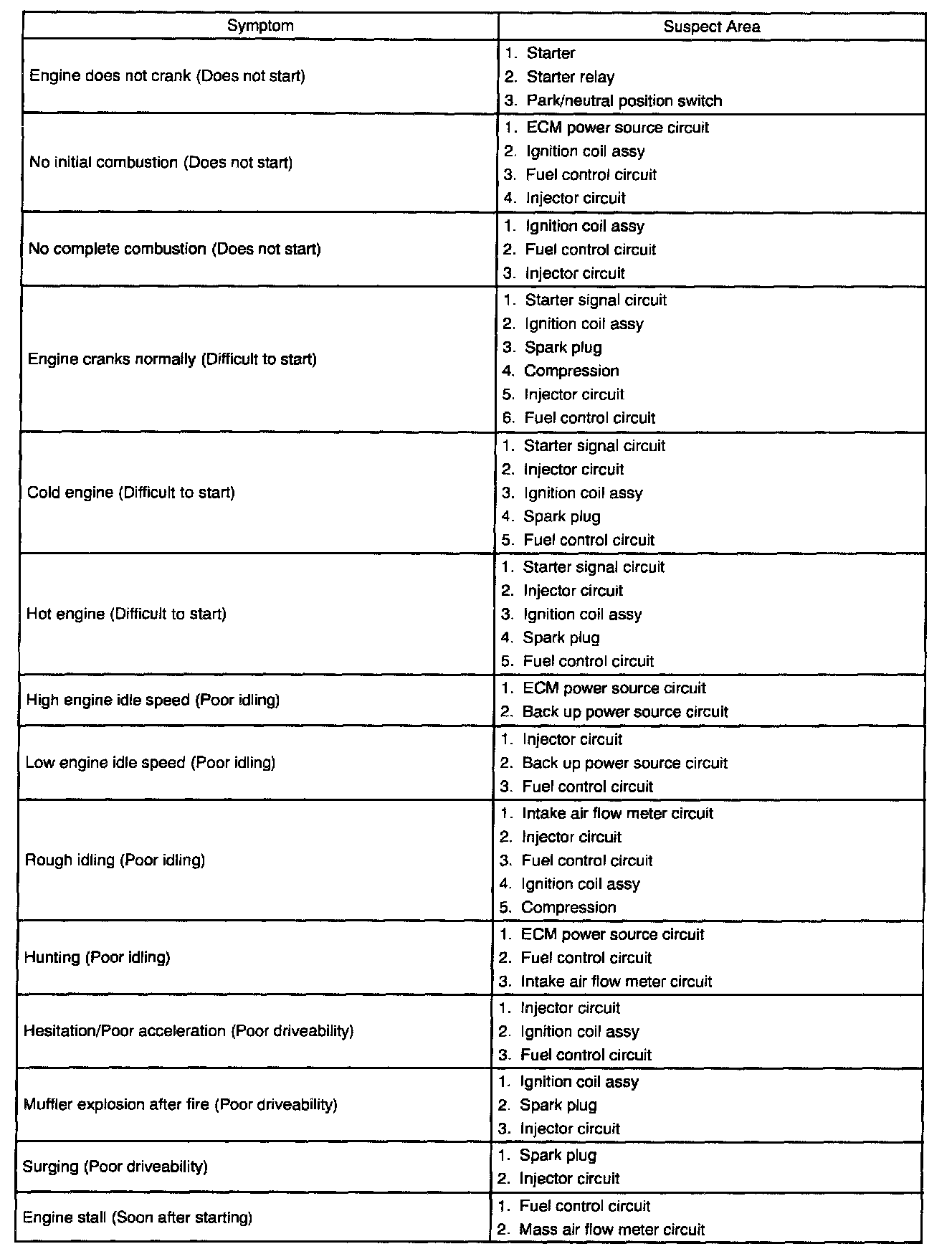

PROBLEM SYMPTOMS TABLEProblem Symptoms Table Part 1:

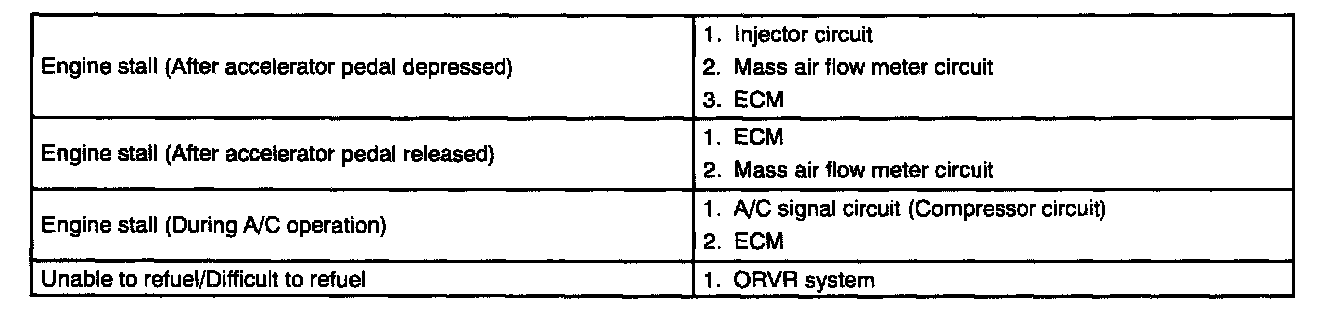

Problem Symptoms Table Part 2:
When the malfunction is not found in the DTC check and the problem still cannot be determined in the basic inspection either, proceed to this problem symptoms table and troubleshoot according to the number given.
