Engine Immobilizer System

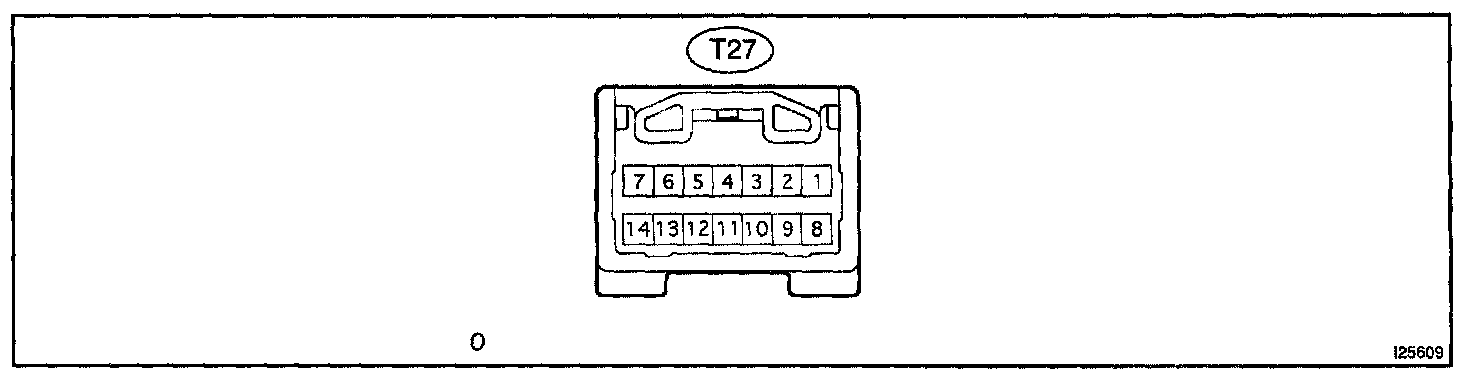

TERMINALS OF ECUTerminals Of ECU/Pinouts:
1.
TRANSPONDER KEY ECU
a.

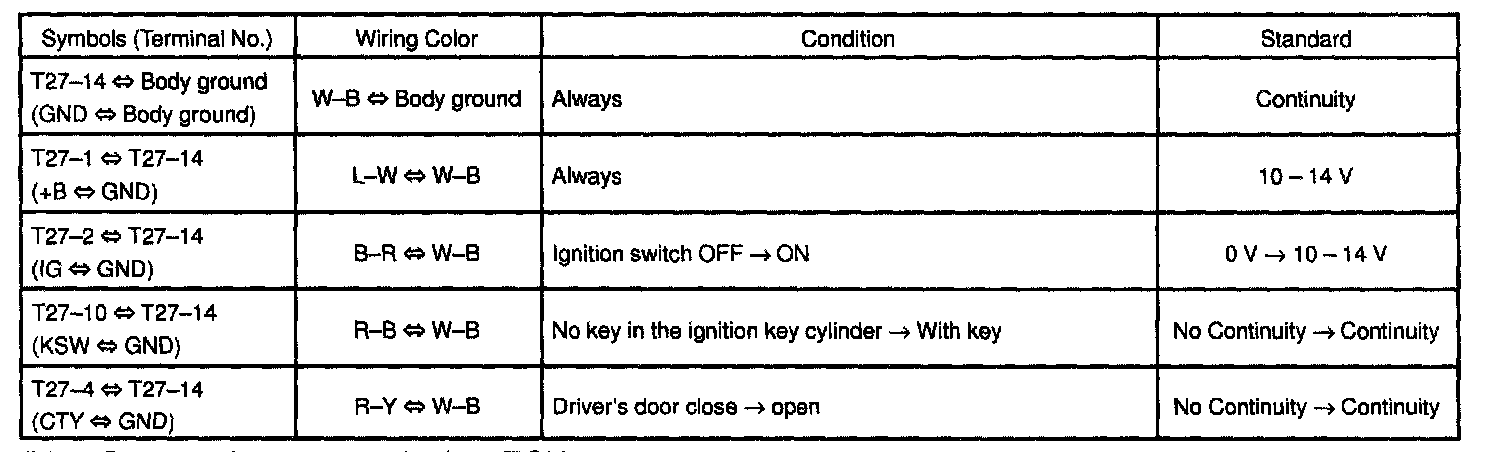

Disconnect the transponder key ECU connector.
Standard: b.

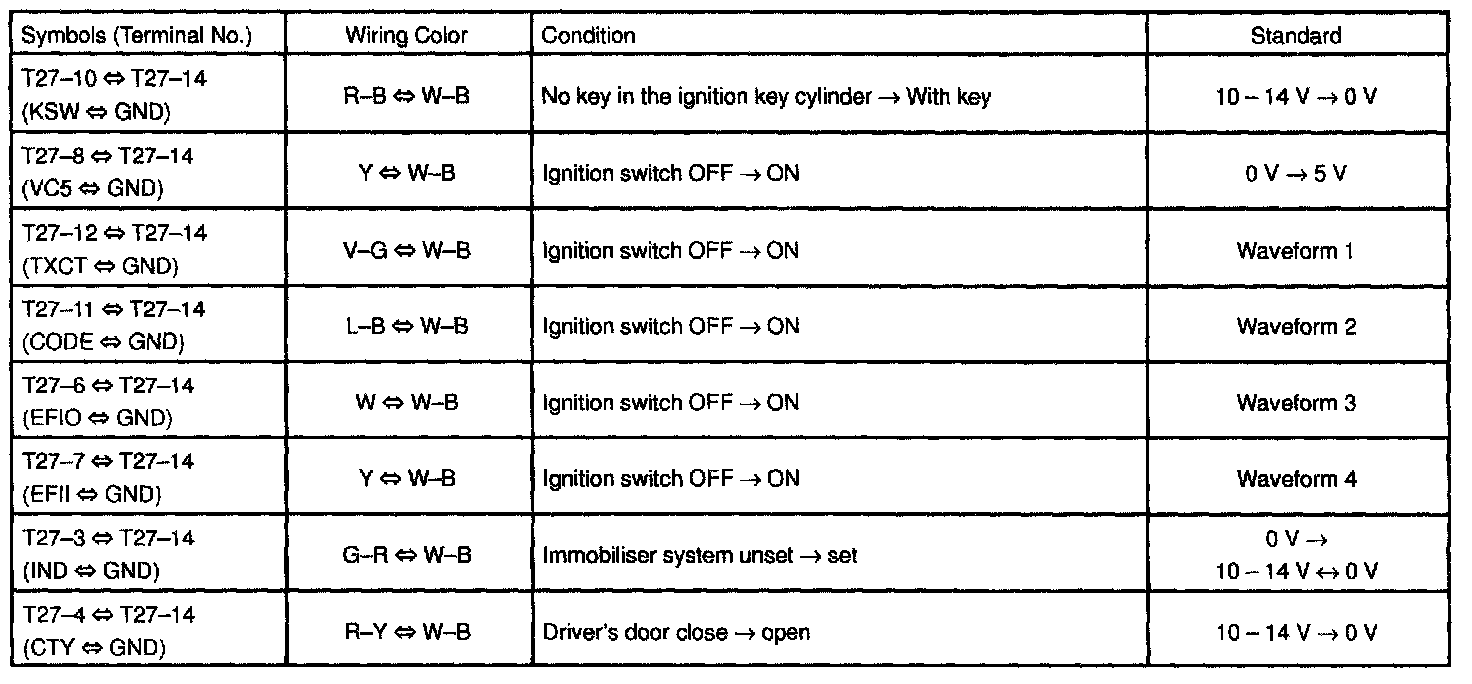

Connect the transponder key ECU connector.

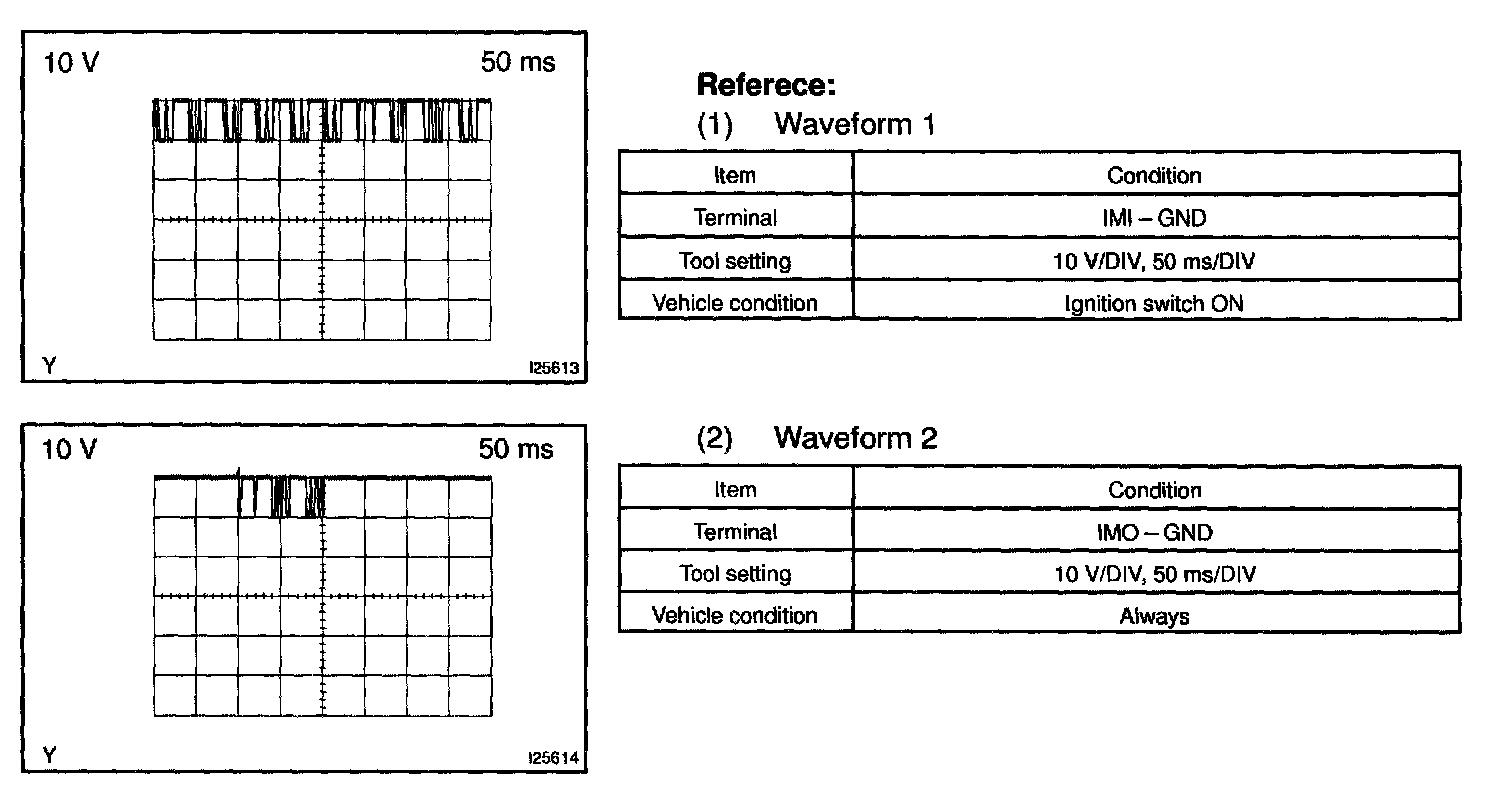

Standard:Oscilloscope Waveforms:
c.
Inspection using oscilloscope.

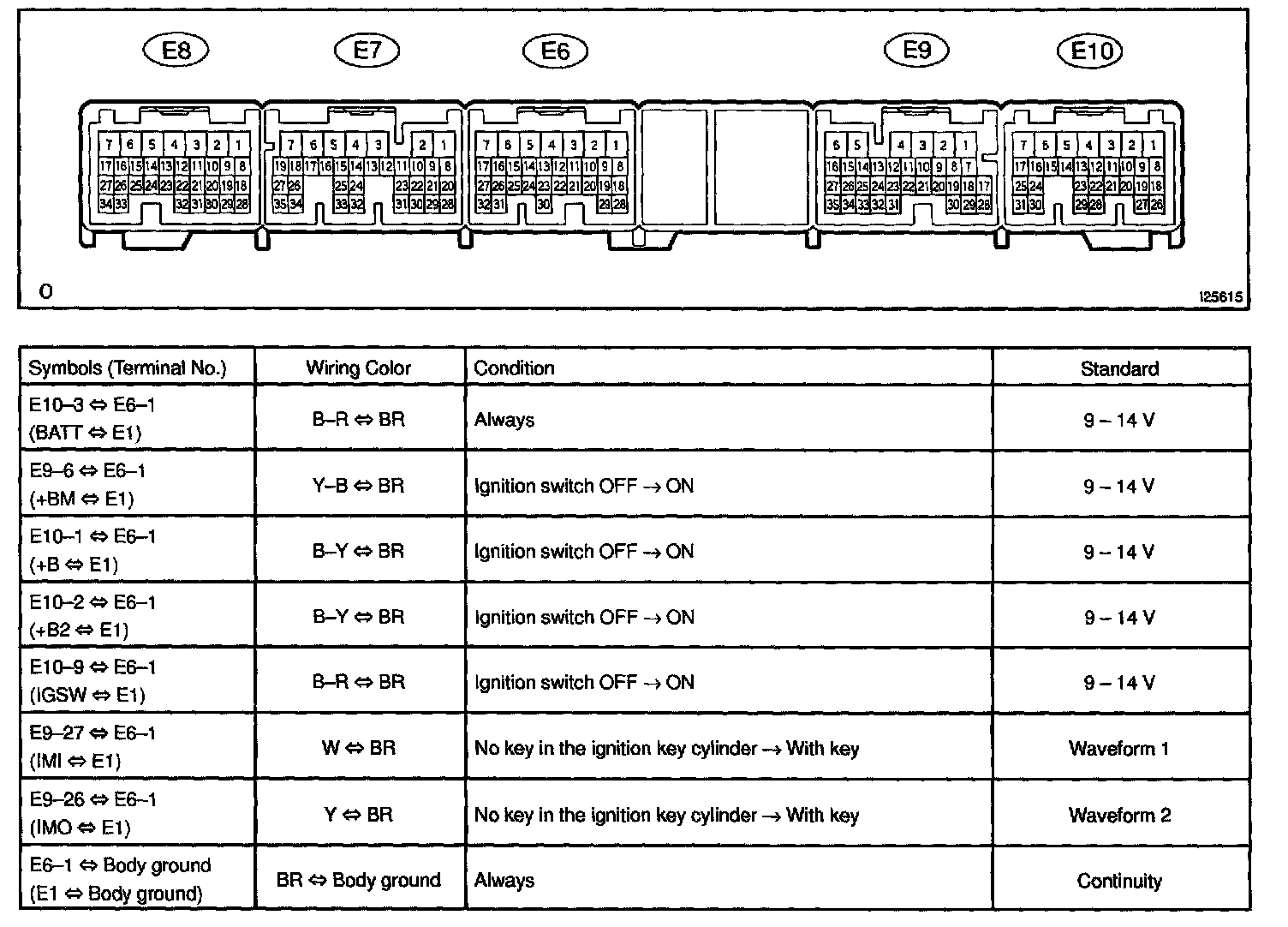

Terminals Of ECU/Pinouts:
2.
ECM
Oscilloscope Waveforms:
Inspection using oscilloscope.
