Normal Scan Data Values

DATA LIST

HINT: By the DATA LIST displayed on the Hand-held tester, you can read the value of the switch, sensor, actuator and so on without removing any parts. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.

a. Turn the ignition switch OFF.
b. Connect the hand-held tester to DLC3.
c. Turn the ignition switch ON.
d. According to the display on tester, read the "DATA LIST".

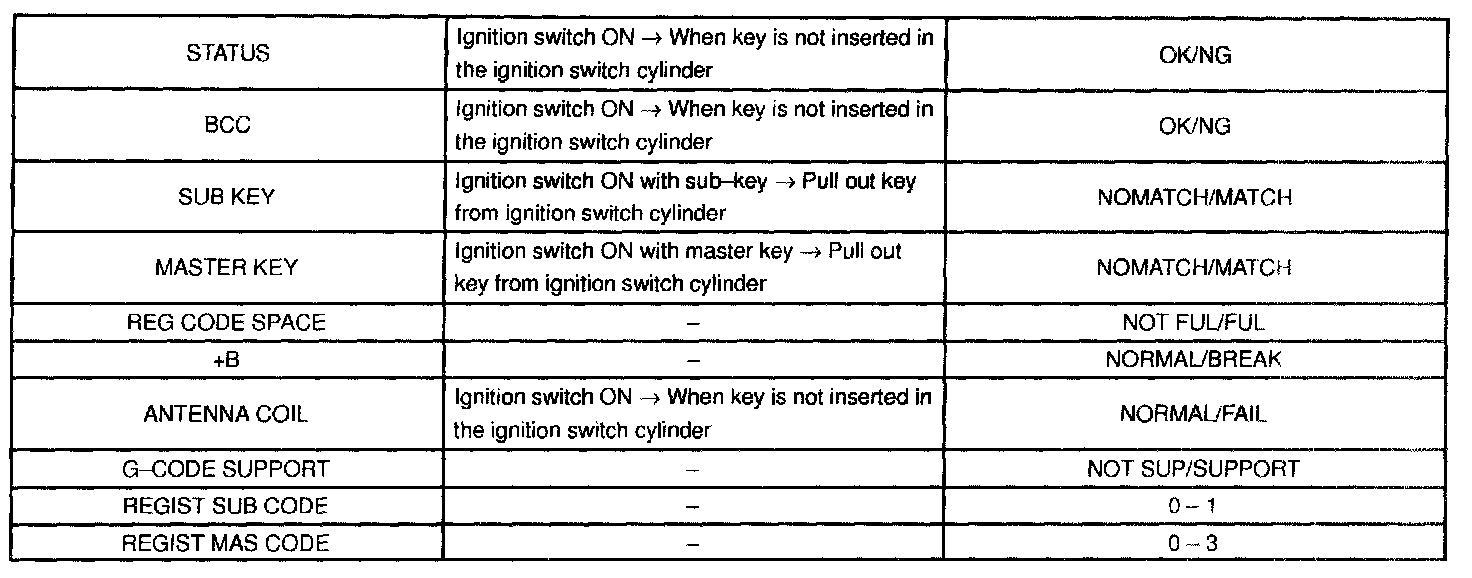

Part 1:

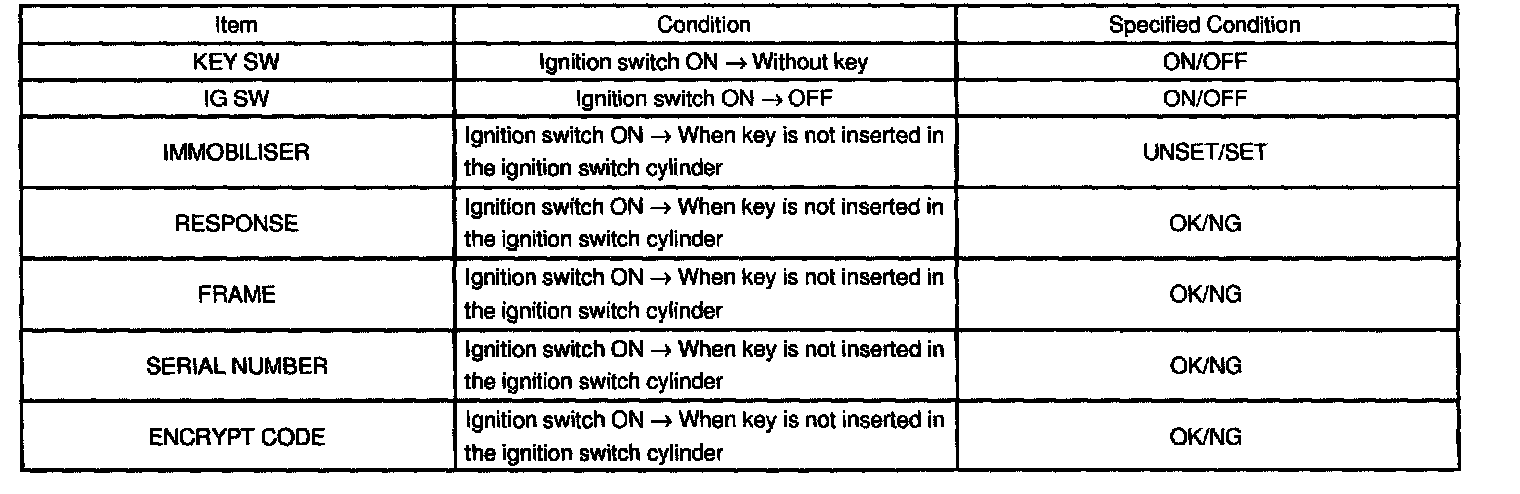

Part 2:




Transponder Key ECU
