Power Window Switch: Testing and Inspection

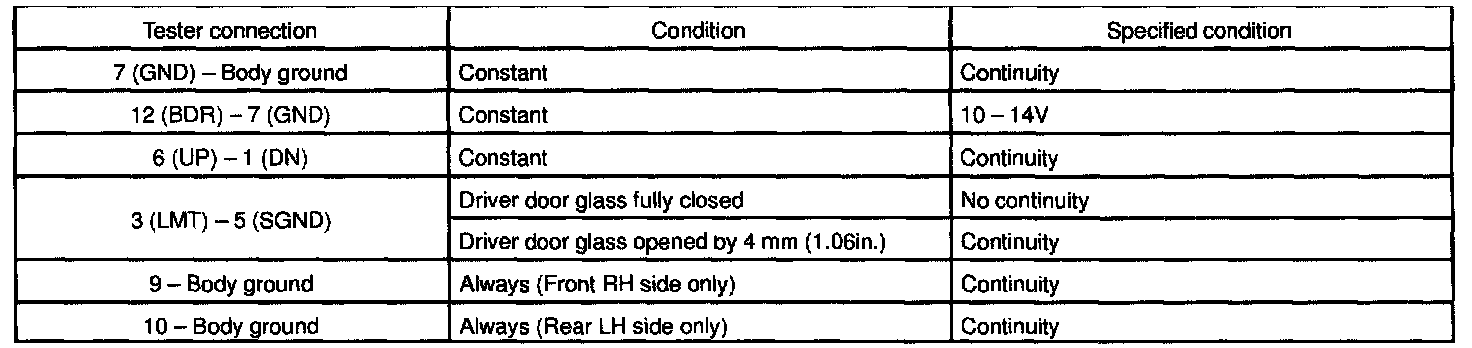

INSPECT POWER WINDOW MASTER SWITCH CIRCUIT
Check the voltage and continuity of each terminal of the wire harness side connector.
If the circuit is not as specified, inspect the circuits connected to other parts.

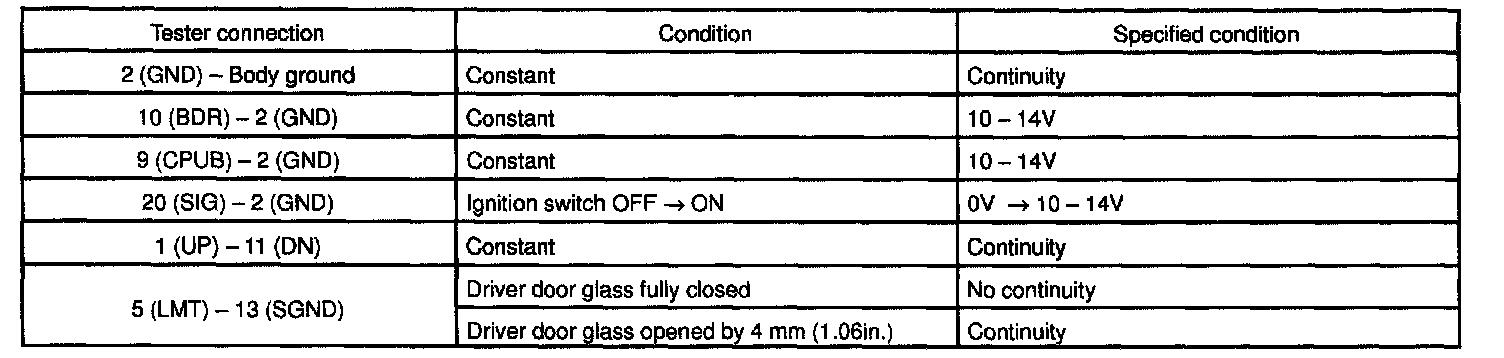

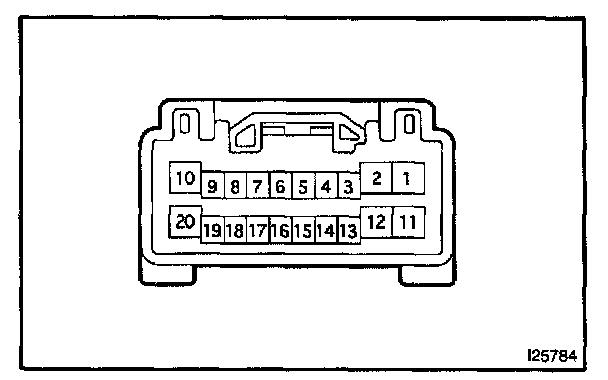

INSPECT POWER WINDOW SWITCH CIRCUIT
Check the voltage and continuity of each terminal of the wire harness side connector.
If the circuit is not as specified, inspect the circuits connected to other parts.

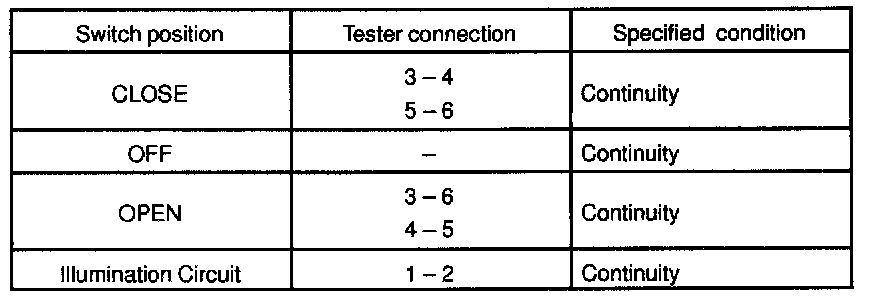

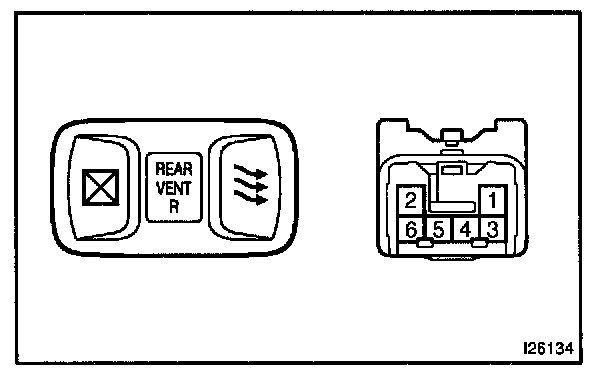

INSPECT POWER QUARTER WINDOW SWITCH CONTINUITY
If continuity is not as specified replace the switch.
