Fail Safe Function
FAIL-SAFE FUNCTION a.
Headlight Leveling Control ECU

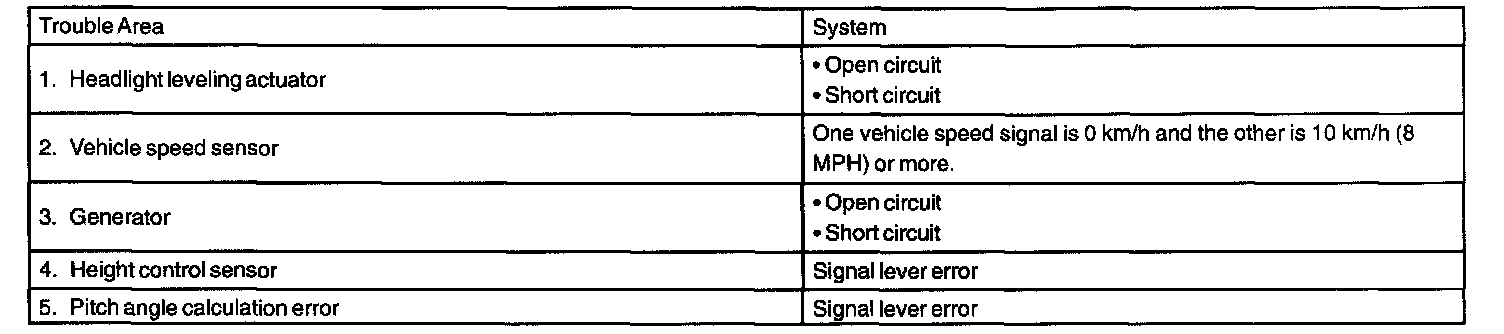

HINT: The Headlight Leveling Control ECU performs the fail-safe when detecting following troubles. At this it lights the warning Indicator light on the combination meter.
Recovery condition (The warning light goes off.)
-
Ignition switch OFF
-
Ignition switch OFF or signal lever error cancellation
b.

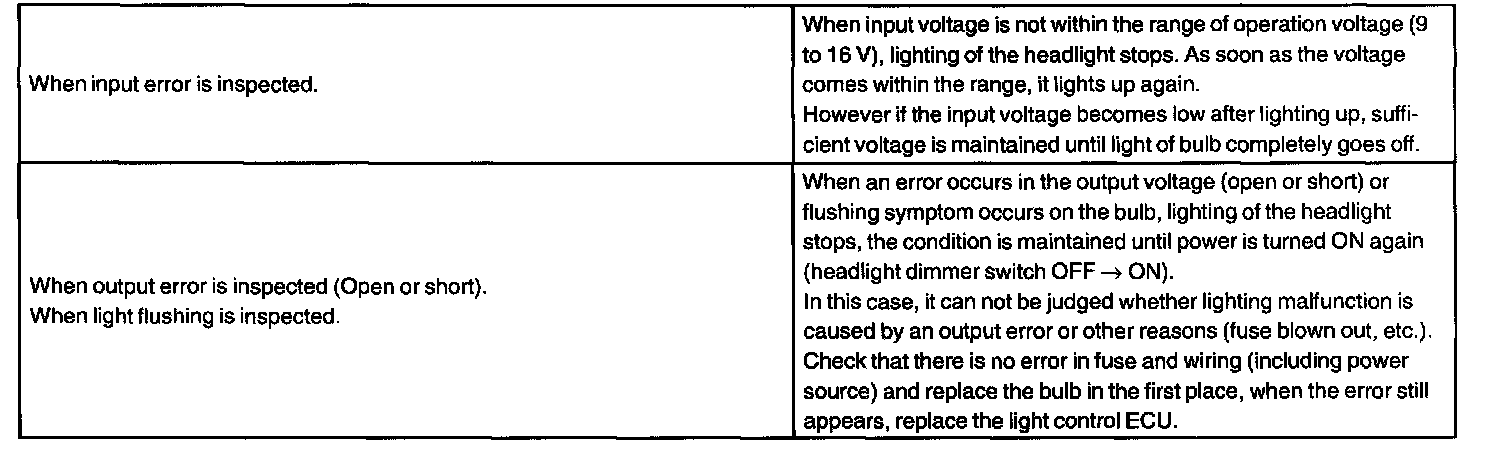

Light Control ECU
