Component Inspection

INSPECTION

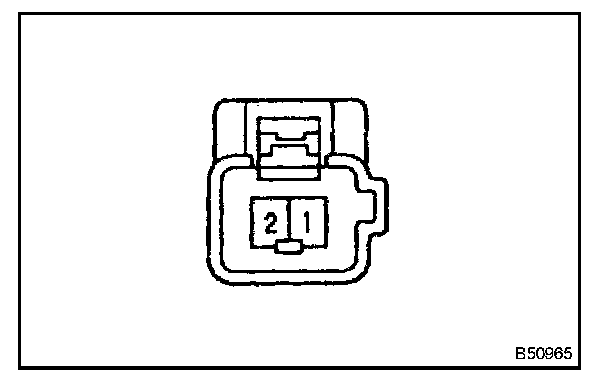

1. INSPECT OUTSIDE DOOR HANDLE (LOCK SWITCH)







a. Remove the outside door handle.

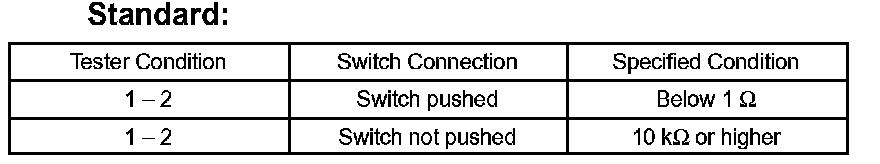

b. Check the resistance between the terminals of the connector when the switch is operated.
If the result is not as specified, replace the outside door handle.

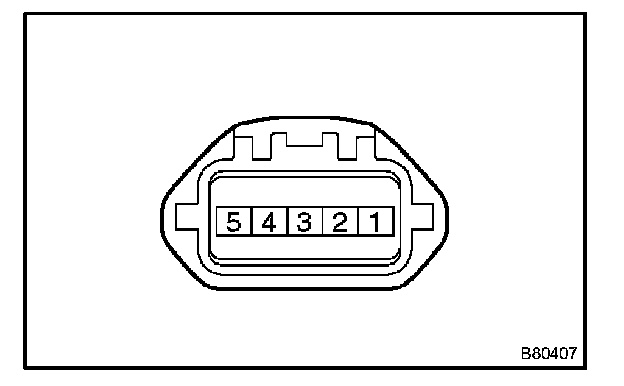

2. INSPECT SMART KEY CANCEL SWITCH







a. Remove the smart key cancel switch.

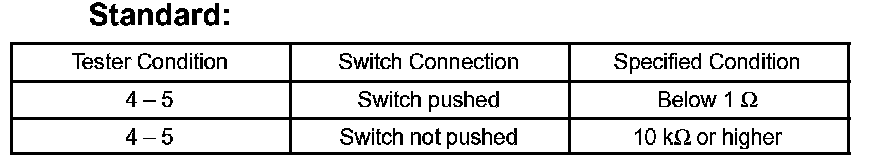

b. Check the resistance between the terminals of the connector when the switch is operated.
If the result is not as specified, replace the smart key cancel switch.
